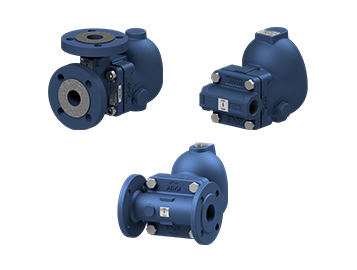

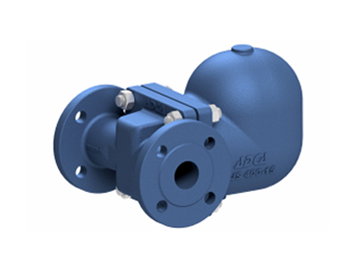

SG IRON
SG IRON

FA line of air and gas vents for liquid systems, manufactured in SG iron and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

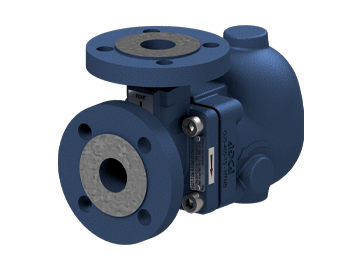

FA21.1
FA21.1

The ADCA FA21.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

SG iron

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1/-2 PN 16
Flanged ASME B16.42/B16.5 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

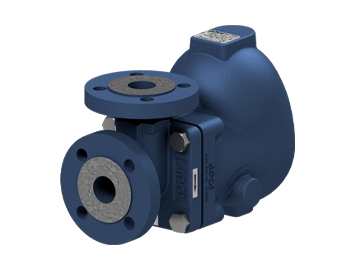

FA25.1
FA25.1

The ADCA FA25.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

SG iron

SIZES

1” – DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1/-2 PN 16
Flanged ASME B16.42/B16.5 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

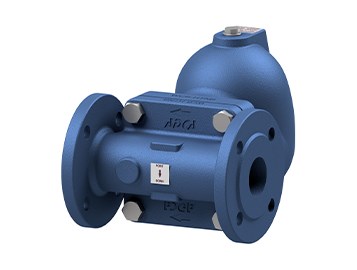

FA25.3
FA25.3

The ADCA FA25.3 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

SG iron

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-2 PN 16
Flanged ASME B16.42 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

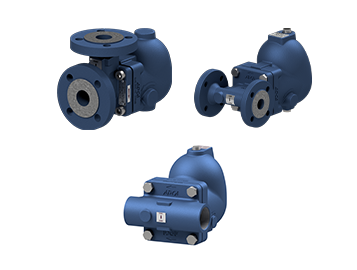

CARBON STEEL
CARBON STEEL

FA line of air and gas vents for liquid systems, manufactured in carbon steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

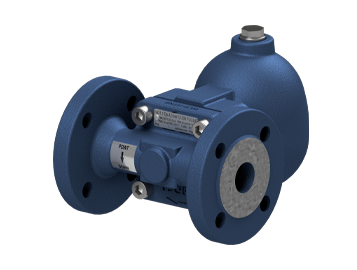

FA31.1
FA31.1

The ADCA FA31.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

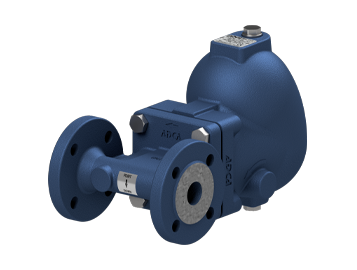

FA35.1
FA35.1

The ADCA FA35.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Carbon steel

SIZES

1” – DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FA35.3
FA35.3

The ADCA FA35.3 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Carbon steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

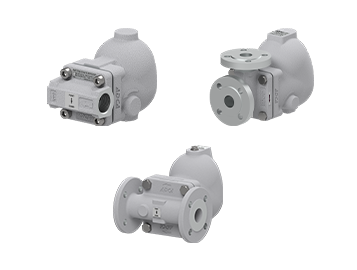

STAINLESS STEEL
STAINLESS STEEL

FA line of air and gas vents for liquid systems, manufactured in stainless steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

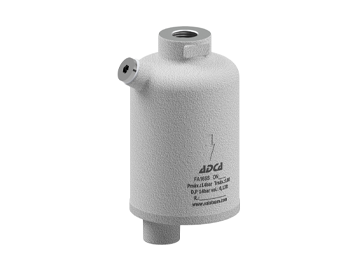

FA16
FA16

The ADCA FA16 series of fully automatic ball float traps are extremely compact, lightweight and specially designed for draining condensate from compressed air lines. Usual applications include aftercoolers, separators and compressed air mains.

MATERIAL

Stainless steel

SIZES

1/2” and 3/4”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

180 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

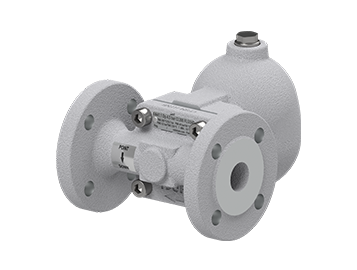

FA41.1
FA41.1

The ADCA FA41.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

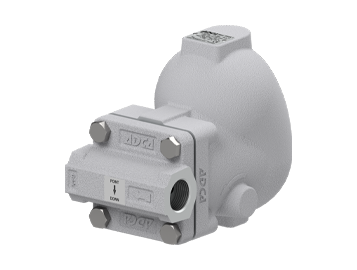

FA45.1
FA45.1

The ADCA FA45.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Stainless steel

SIZES

1” – DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

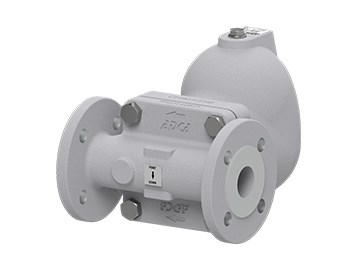

FA45.3
FA45.3

The ADCA FA45.3 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Stainless steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

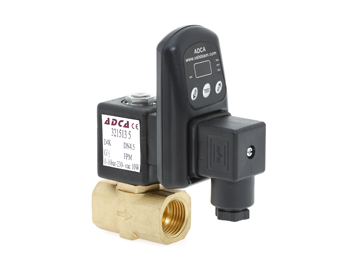

CAD
CAD

The ADCA CAD compressed air automatic drain valve consists of a solid-state timer coupled to a solenoid valve. It is specially designed for automatic drainage of filters, separators, aftercoolers, dryers, receivers, drip legs and other compressed air system components where condensate and contaminants may collect. The drainage interval and discharge time can be adjusted according to the requirements.

SIZES

3/8” and 1/2”

CONNECTIONS

Female threaded ISO 7 Rp
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

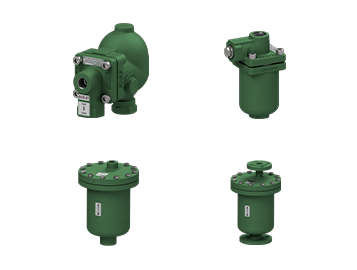

CARBON STEEL
CARBON STEEL

AE line of air and gas vents for liquid systems, manufactured in carbon steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

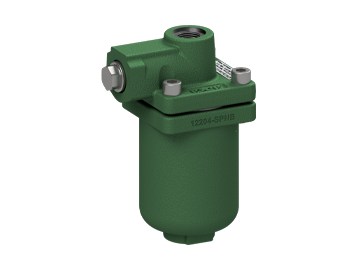

AE50S
AE50S

The ADCA AE50 is a series of automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. These ball float type vents are manufactured in carbon steel, available with metal or soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines.

MATERIAL

Carbon steel

SIZES

1/2” x 1/2” to 1” x 1/2”
DN 15 x 1/2” to DN 25 x 1/2”

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300

MAX. OPERATING PRESSURE

30 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

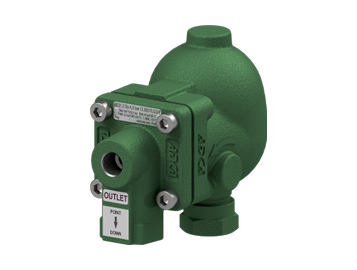

AE31.2
AE31.2

The ADCA AE31.2 is a series of automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. These ball float type vents are manufactured in carbon steel, available with soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines.

MATERIAL

Carbon steel

SIZES

1” x 1/2” – DN 25 x 15

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

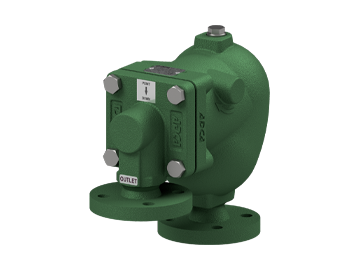

AE35.2
AE35.2

The ADCA AE35.2 is a series of automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Carbon steel

SIZES

1” x 1/2” and 1” x 1”
DN 25 x 15 and DN 25 x 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

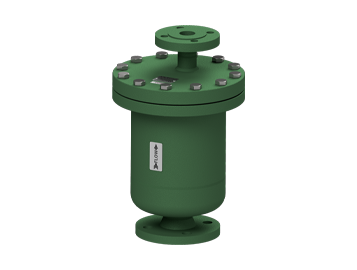

AE37.2
AE37.2

The ADCA AE37.2 is a series of high capacity automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Carbon steel

SIZES

11/2” x 1” and 2” x 1”
DN 40 x DN 25 and DN 50 x DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

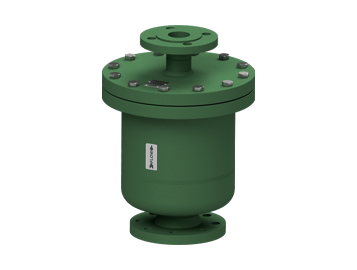

AE39.2
AE39.2

The ADCA AE39.2 is a series of high capacity automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling high loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Carbon steel

SIZES

21/2” x 11/2” and 3” x 11/2”
DN 65 x DN 40 and DN 80 x DN 40

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

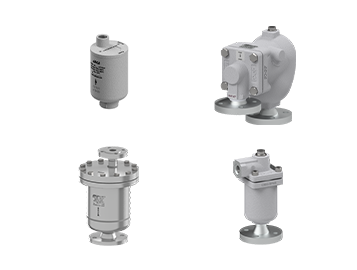

STAINLESS STEEL
STAINLESS STEEL

AE line of air and gas vents for liquid systems, manufactured in stainless steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

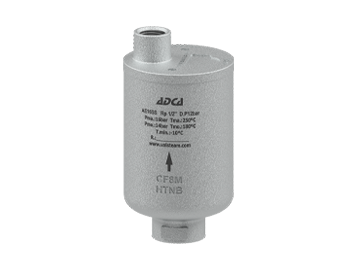

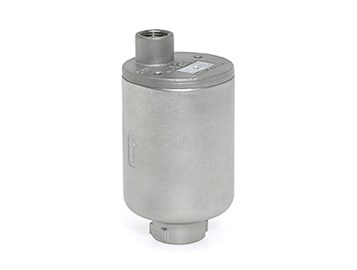

AE16
AE16

The AE16SS all stainless steel air eliminator removes air from HVAC systems and are also suitable for non corrosive and/or dangerous liquids compatible with the construction, providing that their specific weight is no less than 0,75 kg/dm³. This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping.

MATERIAL

Stainless steel

SIZES

1/2” and 3/4”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

Up to 150 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

AE30
AE30

The ADCA AE30 all stainless steel sealed body air eliminator removes air from hot and superheated water systems and is also suitable for all liquids compatible with the construction, providing that their specific weight is not less than 0,75 kg/dm³. This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping.

MATERIAL

Stainless steel

SIZES

1/2” and 3/4”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

30 bar

MAX. OPERATING TEMPERATURE

300 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

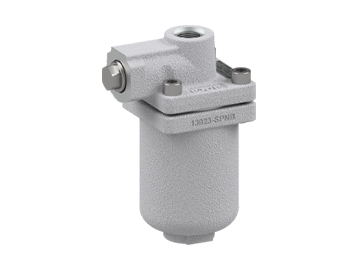

AE50i
AE50i

The AE50 is a series of automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. These ball float type vents are manufactured in stainless steel, available with soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines.

MATERIAL

Stainless steel

SIZES

1/2” x 1/2” to 1” x 1/2”
DN 15 x 1/2” to DN 25 x 1/2”

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300

MAX. OPERATING PRESSURE

30 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

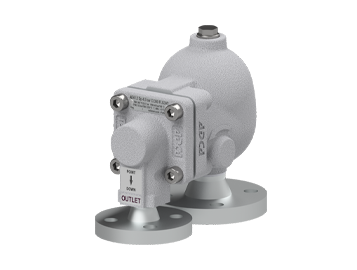

AE41.2
AE41.2

The ADCA AE41.2 is a series of automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. These ball float type vents are manufactured in stainless steel, available with soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines.

MATERIAL

Stainless steel

SIZES

1” x 1/2” – DN 25 x 15

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

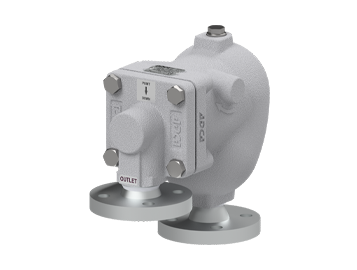

AE45.2
AE45.2

The ADCA AE45.2 is a series of automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads  during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Stainless steel

SIZES

1” x 1/2” and 1” x 1”
DN 25 x 15 and DN 25 x 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

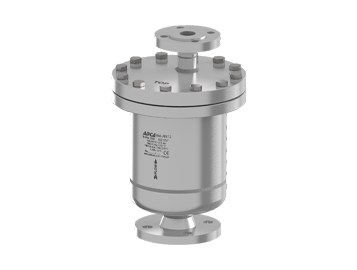

AE47.2
AE47.2

The ADCA AE47.2 is a series of high capacity automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Stainless steel

SIZES

11/2” x 1” and 2” x 1”
DN 40 x DN 25 and DN 50 x DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

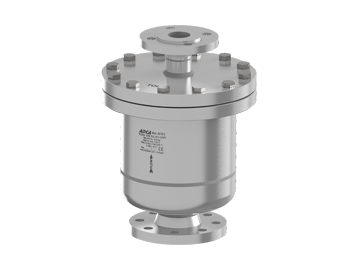

AE49.2
AE49.2

The ADCA AE49.2 is a series of high capacity automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling high loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Stainless steel

SIZES

21/2” x 11/2” and 3” x 11/2”
DN 65 x DN 40 and DN 80 x DN 40

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

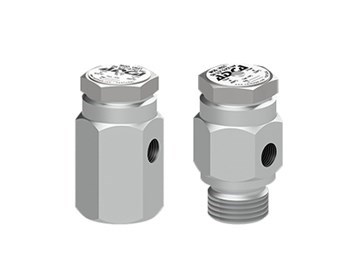

VB21 – VB21M
VB21 – VB21M

The ADCA VB21 vacuum breakers are simple and reliable devices that automatically relieve or “break” an unwanted vacuum condition, restoring the atmospheric pressure. These devices are particularly suitable for steam heated units of small and medium volume, such as heat exchangers, heating coils, calorifiers, jacketed kettles, steam boilers, etc.

MATERIAL

Stainless steel

SIZES

1/2” x 1/8”

CONNECTIONS

VB21 – Female threaded ISO 7 Rp or NPT
VB21M – Male threaded ISO 228

LIMITING CONDITIONS

13 bar at 400 ºC
21 bar at 220 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

VB17
VB17

The ADCA VB17 is a series of vacuum breakers designed to automatically relieve or “break” an unwanted vacuum condition. Applications include venting and vacuum limiting in pipelines, vessels, heat exchangers, autoclaves, steam boilers and other machines.

MATERIAL

Stainless steel

SIZES

1/2" to 2" – DN 15 to DN 50

MAX. OPERATING PRESSURE

16 bar

MAX. OPERATING TEMPERATURE

200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IS140
IS140

The ADCA IS140 is a series of Y strainers applicable in all types of steam, water, oil and air systems. Their purpose is to protect equipment, such as steam traps and regulating valves, from dirt and impurities which often cause damage and consequent downtime and energy loss.

MATERIAL

Cast steel and stainless steel

SIZES

1/2” to 2”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. ALLOWABLE PRESSURE

40 bar

MAX. ALLOWABLE TEMPERATURE

400 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IS116
IS116

The ADCA IS116 forged steel Y strainers are applicable to all types of steam, water, oil and air systems. Their purpose is to protect traps, regulating valves, piping, etc. from dirt and impurities, which are often the cause of damage and consequent energy loss of fluid systems.

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN or ASME
Socket weld (SW) ASME 16.11

MAX. ALLOWABLE PRESSURE

136 bar

MAX. ALLOWABLE TEMPERATURE

425 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IS16F
IS16F

The ADCA IS16F cast iron Y strainers are applicable in all types of steam, water, oil and air systems. Their purpose is to protect traps, regulating valves, piping, etc. from dirt and impurities, which are often the cause of damage and consequent energy loss of fluid systems.

MATERIAL

Cast iron

SIZES

DN 15 to DN 300

CONNECTIONS

Flanged EN 1092-2 PN16
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IS40T (EN)
IS40T (EN)

The ADCA IS40T cast steel T strainers are applicable in all types of steam, water, oil and air systems. Their purpose is to protect traps, regulating valves, piping, etc. from dirt and impurities, which are often the cause of damage and consequent energy loss of fluid systems.

MATERIAL

Stainless steel or carbon steel

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN 1092-1 PN 16, PN 25 or PN 40
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IS40T (ASME)
IS40T (ASME)

The ADCA IS40T cast steel T strainers are applicable in all types of steam, water, oil and air systems. Their purpose is to protect traps, regulating valves, piping, etc. from dirt and impurities, which are often the cause of damage and consequent energy loss of fluid systems.

MATERIAL

Stainless steel or carbon steel

SIZES

1” to 4”

CONNECTIONS

Flanged ASME B16.5 Class 150 or 300
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

SW12
SW12

The ADCA SW12 is a series of single window sight glasses specially designed for installation downstream of steam traps, to monitor their performance such as checking for live steam leakage or blockage. Such devices can also be used for monitoring flow conditions in other applications, particularly in pipelines with liquid medium.

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

150 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

DW40
DW40

The ADCA DW40 is a series of double window sight glasses specially designed for installation downstream of steam traps, to monitor their performance such as checking for live steam leakage or blockage. Such devices can also be used for monitoring flow conditions in other applications, particularly in pipelines with liquid medium.

MATERIAL

Carbon steel

SIZES

1/2” to 2“ – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40 or ASME B16.5 Class 150 or 300

MAX. ALLOWABLE PRESSURE

40 bar

MAX. ALLOWABLE TEMPERATURE

280 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

DW12
DW12

The ADCA DW12 is a series of double window sight glasses specially designed for installation downstream of steam traps, to monitor their performance such as checking for live steam leakage or blockage. Such devices can also be used for monitoring flow conditions in other applications, particularly in pipelines with liquid medium.

MATERIAL

Cast iron and stainless steel

SIZES

DN 15 to DN 150

CONNECTIONS

Flanged EN 1092-1/-2 PN 16

MAX. ALLOWABLE PRESSURE

16 bar

MAX. ALLOWABLE TEMPERATURE

280 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

SCKi
SCKi

The ADCA SCKi sight checkers function as both sight glasses and check valves. Such devices are designed for installation downstream of steam traps, to monitor their performance, while also working as reliable check valves to prevent condensate backflow.

MATERIAL

Stainless steel

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

10 bar

MAX. OPERATING TEMPERATURE

150 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RT25
RT25

The ADCA RT25 all stainless steel disc check valves have a compact design and were specially designed for use with steam and hot condensate.

MATERIAL

Stainless steel

SIZES

1/4” to 2”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

220 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RD40
RD40

The ADCA RD40 disc check valves have a compact design and are specially designed for use with steam and hot condensate.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RD40 | DN15 - 100
RD40 | DN15 - 100

SIZES

1/2” to 4” – DN 15 to DN 100

CONNECTIONS

Sandwiched between flanges as per EN 1092 or ASME

MAX. ALLOWABLE PRESSURE

40 bar

MAX. ALLOWABLE TEMPERATURE

300 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RD40 | DN 125 - 200
RD40 | DN 125 - 200

MATERIAL

Stainless steel

SIZES

5” to 8” – DN 125 to DN 200

CONNECTIONS

Sandwiched between flanges as per EN 1092 or ASME

MAX. ALLOWABLE PRESSURE

40 bar

MAX. ALLOWABLE TEMPERATURE

300 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

M3i5
M3i5

The M3i5 three piece ball valves are reduced bore isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

MATERIAL

Stainless steel

SIZES

1/2” to 2”

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 100
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

M3i1
M3i1

The M3i1 three piece ball valves are full bore isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

MATERIAL

Stainless steel

SIZES

3/8” to 2”

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 100
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

M3S1
M3S1

The M3S1 three piece ball valves are full bore isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

MATERIAL

Zinc plated carbon steel

SIZES

1/2” to 2”

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Socket weld (SW) ASME B16.16
Butt weld (BW) ASME B16.25

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 100
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

MWS1 / MWi1
MWS1 / MWi1

The MWS1 and MWi1 series wafer ball valves are compact isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

MATERIAL

Carbon and stainless steel

SIZES

DN 15 to DN 150

CONNECTIONS

Flanged EN PN16

MAX. ALLOWABLE PRESSURE

16 bar

MAX. ALLOWABLE TEMPERATURE

220 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

SRH
SRH

Spring return handles, also called “dead man’s handles” consist of an enclosed spring-loaded lever mechanism which ensures fail-safe operation when mounted in a quarter-turn valve. This device ensures that the valve cannot be left open (or closed) as a powerful spring will place the valve in the fail-safe position as soon as the operator releases the handle.

MATERIAL

Stainless steel

CONNECTIONS

ISO 5211 mounting
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

GV32B
GV32B

The ADCA GV32B bronze inline stop valves are designed for use with steam, water, oil or air applications.

MATERIAL

Bronze

SIZES

1/2” to 2”

CONNECTIONS

Threaded ISO 7 Rp or NPT on request

LIMITING CONDITIONS

14 bar at 198 ºC
32 bar at 100 ºC

RATING

PN32
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

VF20
VF20

The ADCA VF20 is a series of maintenance free inline stop valves designed with double wall bellow sealing, secondary safety packing and non-rising handwheel. They are specially recommended for steam, gas, liquid, condensate, thermal oil and water applications.

MATERIAL

Cast iron

SIZES

DN 15 to DN 200

CONNECTIONS

Flanged EN 1092-2 PN 16
Others on request

MAX. ALLOWABLE PRESSURE

16 bar

MAX. ALLOWABLE TEMPERATURE

300 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

VF40
VF40

The ADCA VF40 is a series of maintenance free inline stop valves designed with double wall bellow sealing, secondary safety packing and non-rising handwheel. They are specially recommended for steam, gas, liquid, condensate, thermal oil and water applications.

MATERIAL

Carbon steel or stainless steel

SIZES

DN 15 to DN 150

CONNECTIONS

Flanged EN 1092-1 PN 40
Others on request

MAX. ALLOWABLE PRESSURE

40 bar

MAX. ALLOWABLE TEMPERATURE

300 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

NV400
NV400

The ADCA NV400 is a series of high pressure needle valves designed for shut-off applications with steam and other industrial fluids. The NV400B is a special version designed for use as a boiler water sample valve when connected to the bottom sample connection on a VPC TDS blowdown control valve.

MATERIAL

Stainless steel

SIZES

1/4” to 1/2”

CONNECTIONS

Female threaded ISO 228
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

GC400
GC400

The ADCA GC400 gauge valves were designed for mounting of instruments such as pressure gauges, transmitters and switches. Throttling of the valve protects the connected instrument against pressure spikes. Complete valve shut-off and pressure release through the integrated vent plug allows safe instrument removal for replacement or calibration procedures.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2”

CONNECTIONS

ISO 228
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

LGC400
LGC400

The ADCA LGC400 stainless steel level gauge valves were specially conceived to supervise the function and visualize the liquid level in pressure operated pumps, vessels and other equipment. These valves are designed to be used with tubular glass, which can be supplied with the units.

MATERIAL

Stainless steel

SIZES

1/2” x 14 mm

CONNECTIONS

Male threaded ISO 7 R

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

MAN-100
MAN-100

The ADCA MAN-100 are reliable and cost-effective, general purpose bourdon tube pressure gauges designed for pressure measurement of liquid and gaseous media. They have a nominal size diameter of 100mm, units marked in bar and their casing is fully manufactured from stainless steel.

SIZES

1/2"

CONNECTIONS

ISO 228

AMBIENT TEMPERATURE

- 10 ºC to 60 ºC

MAX. OPERATING TEMPERATURE

110 ºC

PRESSURE RANGES

0 to 2,5 bar
0 to 4 bar / 0 to 6 bar
0 to 10 bar / 0 to 16 bar
0 to 25 bar / 0 to 40 bar

ACCURACY

±1% FS
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

MAN-63
MAN-63

The ADCA MAN-63 are reliable general purpose bourdon tube pressure gauges designed for pressure measurement of liquid and gaseous media. These units have a size diameter of 63 mm, range marked in bar and are fully manufactured in stainless steel.

SIZES

1/4"

CONNECTIONS

ISO 228

AMBIENT TEMPERATURE

- 10 ºC to 60 ºC

MAX. OPERATING TEMPERATURE

100 ºC

PRESSURE RANGES

-1 to 1,5 bar / 0 to 2,5 bar
0 to 4 bar / 0 to 6 bar
0 to 10 bar / 0 to 16 bar
0 to 25 bar / 0 to 40 bar

ACCURACY

±1,6% FS
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

MAN-40
MAN-40

The ADCA MAN-40 are reliable and cost-effective, general purpose bourdon tube pressure gauges designed for pressure measurement of liquid and gaseous media. They have a nominal size diameter of 40mm, units marked in bar, steel case and polycarbonate window screen.

SIZES

1/2"

CONNECTIONS

ISO 228

AMBIENT TEMPERATURE

-10 ºC to 60 ºC

MAX. OPERATING TEMPERATURE

60 °C

PRESSURE RANGES

0 to 2,5 bar / 0 to 4 bar
0 to 6 bar / 0 to 10 bar
0 to 16 bar / 0 to 25 bar
0 to 40 bar

ACCURACY

±1,6% FS
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

GSC / GSU / GSUL
GSC / GSU / GSUL

The ADCA GSC, GSU and GSUL series pressure gauge siphons were designed to protect pressure gauges from the effects of sudden pressure surges and hot pressurized fluids. They operate as cooling elements for liquids and gases in pressure measuring devices. An isolation pressure gauge cock is recommended to be installed in combination with gauge siphons.

MATERIAL

Stainless steel

SIZES

1/2” (male x female)

CONNECTIONS

ISO 228-1

LIMITING CONDITIONS

40 bar at 300 ºC
110 bar at 110 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

GSV
GSV

The ADCA GSV series pressure gauge siphons have been designed to protect pressure gauges from the effect of rapid pressure surges and hot pressurized fluids. Specifically designed to replace the traditional “pigtail" and other coil designs siphons where it is necessary to eliminate gauge whip and vibration. They operate as cooling elements for liquids and gases in pressure measuring devices. An isolation pressure gauge cock is recommended to be installed in combination with gauge siphons.

MATERIAL

Stainless steel

SIZES

1/2” (male x female)

CONNECTIONS

ISO 228-1

LIMITING CONDITIONS

63 bar at 400 ºC
100 bar at 120 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TG90
TG90

The ADCA TG90 are general-purpose bimetal thermometers designed for temperature measurement in simple heating applications with liquid and gaseous media. The unit has a nominal size diameter of 90 mm, units marked in Celsius degrees, casing manufactured in stainless steel, and includes a brass thermowell.

SIZES

1/2"

CONNECTIONS

ISO 228

SCALE RANGES

0 to 120 ºC. Others on request.

AMBIENT TEMPERATURE

- 20 to 60 ºC

ACCURACY

±2% FS
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

Need Help

We're here to help and answer any questions you might have.

1 + 6 =
