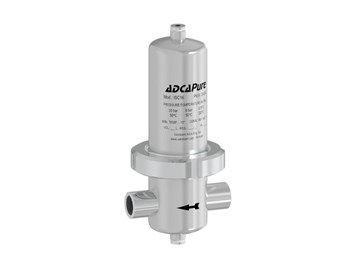

ISC16
ISC16

The ISC16 high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves. Up to 3” / DN 80, they are joined by a food industry fitting according to DIN 11851 and the larger sizes DN 100 to DN 200 by flat flanges fixed with bolts and nuts.

SIZES

1/4” to 3” – DN 10 to DN 80

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

10 bar @ 200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

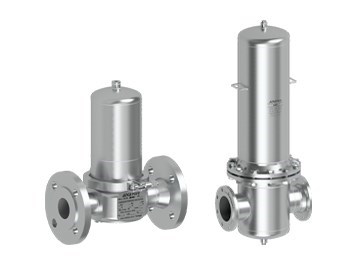

ISC20i
ISC20i

The ISC20i high efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves, with 1/4" to 3" being joined by a sanitary clamp ferrule according to DIN 32676 Series A. Whereas 4" to 6" are joined by bolts and nuts. All sizes include plugged drain and vent connections. The replaceable filter elements are made of sintered austenitic stainless steel and available with 1, 5 or 25 micron absolute rating.

SIZES

1/4” to 6” – DN 10 to DN 150

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150

MAX. OPERATING PRESSURE

Up to 16 bar

MAX. OPERATING TEMPERATURE

Up to 200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

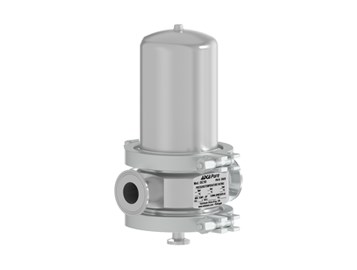

ISH10i
ISH10i

The ISH10i high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves and are joined by a sanitary clamp ferrule according to DIN 32676 Series A.

SIZES

1/2” to 2” – DN 10 to DN 50

CONNECTIONS

ASME BPE, DIN and ISO clamp ferrules

MAX. OPERATING PRESSURE

10 bar @ 200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

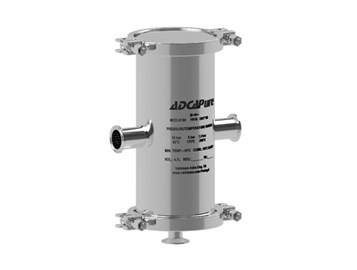

S10H
S10H

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10H series baffle separators remove moisture from steam pipelines. Steam passes through the separator and as a result of expansion, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

MATERIAL

Stainless steel

SIZES

1/2” to 3”

CONNECTIONS

ASME BPE clamp ferrules

MAX. ALLOWABLE PRESSURE

10 bar

MAX. RELATED TEMPERATURE

200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

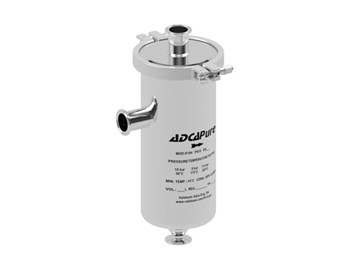

S10HV
S10HV

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10HV series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

MATERIAL

Stainless steel

SIZES

1/2” to 2”

CONNECTIONS

ASME BPE clamp ferrules

MAX. ALLOWABLE PRESSURE

10 bar

MAX. RELATED TEMPERATURE

200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

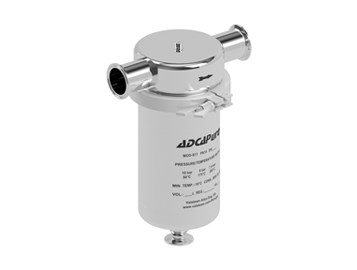

S11
S11

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S11 series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

MATERIAL

Stainless steel

SIZES

1/2” to 2”

CONNECTIONS

ASME BPE clamp ferrules

MAX. ALLOWABLE PRESSURE

10 bar

MAX. RELATED TEMPERATURE

200 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

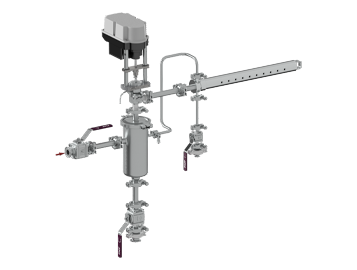

DSHS
DSHS

The ADCA DSHS series of hygienic direct steam injection humidifiers are designed to ensure highly efficient and moisture free clean steam injection in air ducts and AHU for humidification purposes. These units are completely manufactured in 316L stainless steel, and are available as plug and play packaged solutions or alternatively as individual components to be incorporated into humidification systems.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

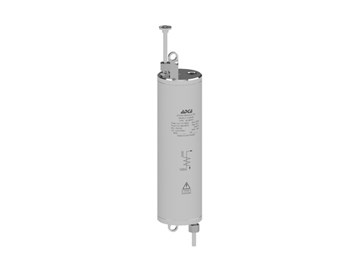

SC32P
SC32P

The ADCAPure SC32P sample cooler consists in a helical-coil heat exchanger used to take samples quickly and safely from steam generators, clean or pure steam systems, WFI and other high purity mediums. Its spiral design saves significant space without compromise and a counter current flow path maximizes heat transfer and consequently cooling efficiency. The vertical sampling side ensures self drainability, as medium flows naturally by gravity to the sample outlet with no chance to remain inside.

MATERIAL

Stainless steel

SIZES AND CONNECTIONS

Cooling water inlet/outlet: 1/2” on body or 3/4" tri-clamp
Sample tube inlet/outlet: 8 mm O/D Alternative 1/2" tri-clamp compatible
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

Special equipment
Special equipment

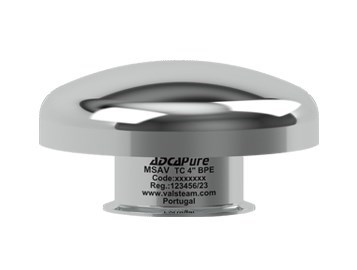

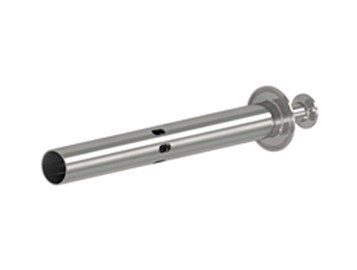

ADCAPure tailor made equipment, such as skid mounted systems, clean steam injectors, mushroom style air vents, and others, are available as a complement of this wide sanitary range.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.
