POPS
POPS

The ADCAMAT POP (Pressure Operated Pump), fabricated in carbon steel (stainless steel on request), is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

POPS | DN 25 - 80
POPS | DN 25 - 80

MATERIAL

Carbon steel

SIZES

DN 100 x 100 (for smaller sizes see IS 9.101E)

CONNECTIONS

Flanged EN PN16
Threaded ISO 7 Rp
Others on request

FLOW RATE CAPACITY

6080 kg/h

MAX. MOTIVE PRESSURE

10 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

POPS | DN 100
POPS | DN 100

MATERIAL

Carbon and stainless steel

SIZES

DN 25, DN 40, DN 50 and DN 80 x 50

CONNECTIONS

Flanged EN PN16
Threaded ISO 7 Rp
Others on request

FLOW RATE CAPACITY

29800 kg(h

MAX. MOTIVE PRESSURE

10 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

POPS-K
POPS-K

The POPS-K packaged pump units can be used to lift or displace hot condensate and other liquids even in hazardous areas.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

POPS-K - Simplex
POPS-K - Simplex

A POPS-K packaged unit is comprised by an ADCAMat pump, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection. Packaged units save time, work and site costs. In addition, they ensure that the installation of the pump is correct in every detail.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

POPS-K - Duplex
POPS-K - Duplex

A POPS-KD (Duplex) packaged unit is comprised by two ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

POPS-K - Triplex
POPS-K - Triplex

A POPS-KT (Triplex) packaged unit is comprised by three ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

POP-LC
POP-LC

The ADCAMAT POP-LC (Pressure Operated Pump) is recommended in the transfer of high-temperature liquids such as condensate, oils and other liquids to a higher elevation or pressure. The pump starts when there is something to pump and stops when there isn’t. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or gas and can be used for lifting any kind of non-corrosive liquids.

MATERIAL

Carbon and stainless steel

SIZES

DN 25 LC, DN 40 LC, DN 40 x 25 LC

CONNECTIONS

Flanged EN PN16
Threaded ISO 7 Rp
Others on request

MAX. MOTIVE PRESSURE

10 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

APST
APST

The ADCAMAT APST (Automatic Pump and Steam Trap) is especially recommended where a stall condition may occur due to poor steam trap condensate discharge, caused by temporary insufficient differential pressure. The equipment has the features of a float steam trap combined with a pressure operated pump in the same unit. Whenever the steam trap function is not enough to drain the condensate, the pump function is activated (using external steam pressure), before water logging may occur, lifting the condensate to the condensate return system, avoiding water hammer and consequent noise and equipment damage, corrosion, unstable temperature control, etc.

MATERIAL

Carbon and stainless steel

SIZES

DN 40 x 40 – DN 50 x 50; 11/2 x 11/2”; 2” x 2”

CONNECTIONS

Flanged EN PN16
Threaded ISO 7 Rp
Others on request

FLOW RATE CAPACITY

3910 kg(h

MAX. MOTIVE PRESSURE

10 bar

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PPT14
PPT14

The ADCAMat PPT14 automatic pump trap is especially recommended where stall condition may occur due to poor steam trap condensate discharge capacity, caused by temporary insufficient pressure drop. The equipment combines the features of a float steam trap and a pressure operated pump, in one single unit. Whenever the steam trap function is incapable of draining condensate, the pump function is activated (using external steam pressure). The pump replaces the necessary positive pressure to lift the condensate to the return system, before water-logging occurs, avoiding water hammer and consequent noise, equipment damage, corrosion, unstable temperature control, etc.

MATERIAL

Carbon and stainless steel

SIZES

11/2” x 1” and 2” x 11/2”
DN 40 x 25 and DN 50 x 40.

CONNECTIONS

Flanged EN PN 16 and ASME Class 150
Threaded ISO 7 Rp
Others on request

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PPA312
PPA312

The ADCAMAT PPA series is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or gas and can be used for lifting any kind of non-corrosive liquids.

MATERIAL

Carbon steel

SIZES

DN 50 x 50 – DN 80 x 50

CONNECTIONS

Flanged EN PN16
Flanged ASME Class 150
Special flanges on request

MAX. ALLOWABLE PRESSURE

16 bar

MAX. MOTIVE PRESSURE

10 bar

MAX. ALLOWABLE TEMPERATURE

250 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PPA14
PPA14

The ADCAMAT PPA (Pressure Operated Pump) is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

MATERIAL

Carbon steel

SIZES

DN 80 x 50

CONNECTIONS

Flanged EN PN16
Flanged ASME Class 150
Threaded ISO 7 Rp
Special flanges on request

FLOW RATE CAPACITY

6290 kg/h

MAX. MOTIVE PRESSURE

10 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PPO14
PPO14

The ADCAMAT PPO (Pressure Operated Pump) is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

MATERIAL

Carbon and stainless steel

SIZES

DN 25, DN 40 and DN 50

CONNECTIONS

Flanged EN PN16
Threaded ISO 7 Rp
Others on request

MAX. ALLOWABLE PRESSURE

16 bar

MAX. MOTIVE PRESSURE

10 bar

MAX. RELATED TEMPERATURE

250 ºC

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S16S
S16S

The S16 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impacts and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

MATERIAL

Carbon steel body

SIZES

1/2” to 2”

CONNECTIONS

Threaded BSP or NPT

MAX. OPERATING PRESSURE

16 bar

MAX. OPERATING TEMPERATURE

250 ºC

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S25S
S25S

The S25 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impacts and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S25/S | PN16 - PN40
S25/S | PN16 - PN40

MATERIAL

Carbon steel body

SIZES

DN 15 to DN 300

CONNECTIONS

Flanged EN PN16 or 40
Flanged ASME Class 150 or 300
Threaded ISO 7 Rp or NPT on request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S25/S | PN63
S25/S | PN63

MATERIAL

Carbon steel body

SIZES

DN 15 to DN 200

CONNECTIONS

Flanged EN PN 63
Flanged ASME Class 600
Socket weld (SW) ASME

MAX. OPERATING PRESSURE

58 bar

MAX. OPERATING TEMPERATURE

300 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S25/SS
S25/SS

MATERIAL

Carbon steel and zinc plated body

SIZES

DN 15 to DN 300

CONNECTIONS

Flanged EN PN16 or PN40
ASME Class 150 or 300
Threaded ISO 7 Rp or NPT on request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S25 HV-VH
S25 HV-VH

MATERIAL

Stainless steel

SIZES

DN 15 to DN 200

CONNECTIONS

Flanged EN PN16 or PN40
ASME Class 150 or 300
Threaded ISO 7 Rp or NPT on request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S251F
S251F

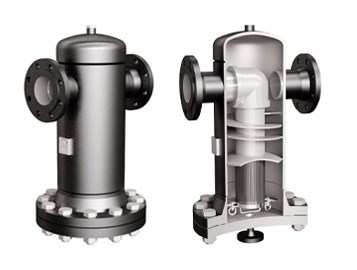

The SF251/S series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

MATERIAL

Carbon steel body

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN PN16 or PN40
Flanged ASME Class 150 or 300
Threaded BSP or NPT

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SH25/S
SH25/S

The SH25/S series horizontal centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

MATERIAL

Carbon steel body

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN PN16 or PN40
ASME Class 150 or 300
Threaded ISO 7 Rp or NPT on request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

RATING

PN16 or PN40

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

S30
S30

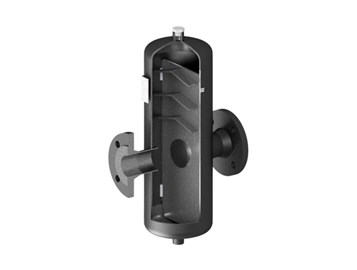

The S30 series baffle separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of expansion, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale, are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

MATERIAL

Carbon steel and zinc plated body

SIZES

DN 15 to DN 300

CONNECTIONS

Flanged EN PN16 or PN40
Flanged ASME Class 150 or 300
Threaded ISO 7 Rp or NPT on request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

RATING

PN16 or PN40

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SC32B-SC132B
SC32B-SC132B

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATERIAL

Stainless steel body and coil

SIZES AND CONNECTIONS

Cooling water body inlet 1/2”, outlet 1/2” (BSP or NPT)
Sample tube inlet/outlet: 8 mm O/D

MAX. OPERATING PRESSURE

20 bar / 110 bar

MAX. RELATED TEMPERATURE

120 ºC / 450 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SC32-SC132
SC32-SC132

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATERIAL

Stainless steel body and coil

SIZES AND CONNECTIONS

Cooling water inlet/outlet: 1/2” on body (BSP or NPT)
Sample tube inlet/outlet: 8 mm O/D

MAX. OPERATING PRESSURE

20 bar / 110 bar

MAX. RELATED TEMPERATURE

120 ºC / 450 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SC32F-SC132F
SC32F-SC132F

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect water sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATERIAL

Stainless steel body and coil

SIZES AND CONNECTIONS

Cooling water body inlet 1/2”, outlet 3/4” (BSP or NPT)
Sample tube inlet/outlet: 8 mm O/D

MAX. OPERATING PRESSURE

20 bar / 110 bar

MAX. RELATED TEMPERATURE

120 ºC / 450 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SC332-SC532
SC332-SC532

The ADCA sample coolers were specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurised liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATERIAL

Stainless steel body and coil

SIZES AND CONNECTIONS

Cooling water inlet/outlet: 1/2” or 3/4'' (BSP or NPT)
Sample tube inlet/outlet: 10 mm O/D

MAX. OPERATING PRESSURE

20 bar / 280 bar

MAX. RELATED TEMPERATURE

550 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SI20
SI20

The SI20 series steam injectors from ADCA are condensate injectors. They ensure low noise and vibration and rapid heating of still or flowing fluids in basins and vessels due to direct steam injection. Steam enters through the inlet housing, passes along the center of the heater, through holes in the inner rings, through spaces between the element plates where it condensates under light load and partly condensates under heavy load to be discharged through the serrated periphery of the element plates. Under heavy load, if any steam passes through the periphery of the element plates, will do so in very small jets and will condensate in the surrounding liquid with very little noise and vibration.

SIZES

3/4”

CONNECTIONS

Threaded ISO 7 Rp

MAX. OPERATING PRESSURE

8,5 bar

MAX. OPERATING TEMPERATURE

180 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SI115
SI115

The SI series steam injectors from ADCA are condensate injectors. They ensure low noise and vibration and rapid heating of still or flowing fluids in basins and vessels, due to direct steam injection. Steam enters through the inlet housing, passes along the center of the heater, mixing with the cool water, which is drawn in through radial holes.

MATERIAL

Austenitic stainless steel

SIZES

1/2”

CONNECTIONS

Threaded ISO 7 Rp

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

95 ºC

RATING

PN 25

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SI125 / SI140
SI125 / SI140

The SI series steam injectors from ADCA are condensate injectors. They ensure low noise and vibration and rapid heating of still or flowing fluids in basins and vessels, due to direct steam injection. Steam enters through the inlet housing, passes along the center of the heater, mixing with the cool water, which is drawn in through radial holes.

MATERIAL

Austenitic stainless steel

SIZES

1” and 11/2”

CONNECTIONS

Threaded ISO 7 Rp

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

95 ºC

RATING

PN25

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

MX20
MX20

The steam/water ADCAMix MX20 mixers provide a cheap and instantaneous source of low-pressure hot water, by using existing steam and cold water supplies. The mixer incorporates a safety device, to ensure that live steam cannot be accidentally ejected even if, for some reason, the cold water supply fails. The temperature of water at the outlet of the Adcamix is easily controlled by using water and steam valves fitted to the inlets.

MATERIAL

Stainless steel

SIZES

3/4” x 3/4”

CONNECTIONS

Threaded ISO 7 Rp

MAX. OPERATING PRESSURE

10 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SG20 Water Saving Gun
SG20 Water Saving Gun

The SG20 series water-saving guns are especially recommended to be used along with the Adcamix MX20 steam to water mixers. By using this gun, water and energy costs can be considerably reduced and it also contributes to environmental protection, avoiding the use of chemicals in the cleaning process. The valve is opened and closed by operating the lever which regulates the flow from a mist to a concentrated jet. The lock catch facilitates continuous operation. The valve is designed for industrial use, it is extremely robust. It is protected against shock, heat and cold by caustic and acid-resistant rubber cladding.

SIZES

1/2"

MAX. OPERATING PRESSURE

24 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

DSH Direct steam injection humidifiers
DSH Direct steam injection humidifiers

The DSH direct steam injector humidifiers assure highly efficient steam release into the air stream. Each humidifier is designed for your specific capacity, steam pressure and duct width requirements. Single and multiple injection tube units are available to meet the most demanding applications. High-quality control valves and actuators assure accurate response and control of the steam flow.

MATERIAL

Cast iron and stainless steel

SIZES

1/2” to 11/2”

CONNECTIONS

Threaded ISO 7 Rp
Flanged connections upon request

MAX. ALLOWABLE PRESSURE

4 bar

MAX. ALLOWABLE TEMPERATURE

152 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

ECRU
ECRU

The ADCAMAT ECRU series electric condensate recovery units are recommended in the transfer of high-temperature water such as hot condensate, to a higher elevation or pressure. This condensate is usually used as boiler feedwater. The standard models are prepared for flows up to 20 m3/h, or higher on request. The units are composed of a condensate vessel (receiver), a metallic support frame, electric pumps, level controls, valves, prewired control panel and pipework for connections between the different elements of the units.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PWHU-WAVE
PWHU-WAVE

A complete system conceived for instant production of heated water using steam as primary fluid. Ready to work, just needs the connections to the respective fluids. This system is ideal whenever there is enough energy available for instant heating.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

FRECO Flash steam heat recover
FRECO Flash steam heat recover

The ADCATtherm FRECO – flash steam heat recovery unit – is a skid mounted package unit to facilitate heat recovery from flash steam, condensate or both. The Freco is especially recommended for heating a continuous flow of fluid, such as make-up water to a boiler feedwater system. Non-continuous flow applications may require additional recirculation, relief valves, or other devices, to avoid system damage due to overheating and consequent overpressure.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

ADG atmospheric semi-deaerators
ADG atmospheric semi-deaerators

The ADCATherm atmospheric semi-deaerators are designed to heat boiler feed water and to reduce oxygen and carbon dioxide (oxygen values in the feed water of less than 1,6 mg/L can be achieved). Remaining oxygen can be completely removed using oxygen-scavenging chemicals. Basically, the complete system consists of a storage vessel, a deaeration head section and a vent.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Flanged EN or ASME
Sockets BSP or NPT
Different connections on request

MAX. ALLOWABLE PRESSURE

0,5 bar

MAX. RELATED TEMPERATURE

120 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

TDG Deaerators
TDG Deaerators

The TDG series tray-type thermal deaerators are designed to heat boiler feed water and reduce oxygen and carbon dioxide levels (oxygen levels in the feed water of less than 0,02 mg/l - 0,02 ppm can be achieved). Remaining oxygen can be completely removed using oxygen-scavenging chemicals. Basically, the complete system consists of a storage vessel, a deaeration section and a vent.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Flanges EN or ASME
Sockets BSP or NPT
Different connections on request

MAX. ALLOWABLE PRESSURE

0,5 bar

MAX. ALLOWABLE TEMPERATURE

120 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

RV
RV

The flash vessel is the main component in any flash recovery system. It can be used in all steam plants where high pressure condensate is reduced to a lower pressure, so that flash steam is formed by reevaporation. This steam can be used in low pressure process or heating equipments.

MATERIAL

Carbon and stainless steel

SIZES

RV06, RV08, RV12, RV16 and RV18

CONNECTIONS

Flanged EN PN16
Special flanges upon request

MAX. OPERATING PRESSURE

16 bar

MAX. OPERATING TEMPERATURE

250 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

RVST
RVST

The flash vessel is the main component in any flash recovery system. It can be used in all steam plants where high-pressure condensate is reduced to a lower pressure, so that flash steam is formed by re-evaporation. This steam can be used in a low pressure process or heating equipment.

MATERIAL

Carbon and stainless steel

SIZES

RVST08, RVST12, RVST16, RVST18

CONNECTIONS

Flanged EN PN16
Special flanges upon request

MAX. OPERATING PRESSURE

16 bar

MAX. OPERATING TEMPERATURE

250 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

STH Heat exchanger
STH Heat exchanger

The ADCA ST series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tubes has the advantage that it can improve the external surface and thermal performance.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Flanged or threaded, according to EN or ANSI standards

MAX. OPERATING PRESSURE

16

MAX. OPERATING TEMPERATURE

250

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

STS Heat exchanger
STS Heat exchanger

The ADCA STS series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tube has the advantage that it can improve the external surface and thermal performance.

MATERIAL

Stainless steel

MAX. ALLOWABLE PRESSURE

16 bar

MAX. RELATED TEMPERATURE

250 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

STV Heat exchanger
STV Heat exchanger

The ADCA ST series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tubes has the advantage that it can improve the external surface and thermal performance.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Flanged or threaded, according to EN or ASME standards

MAX. OPERATING PRESSURE

16 bar

MAX. OPERATING TEMPERATURE

250 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PAT
PAT

The ADCATHERM PAT – plate heat exchangers (gasketed and bolted), consist of a variable number of pressed plates, clamped together between a fixed and a movable plate, all assembled in a metal frame.

CONNECTIONS

Threaded BS21
Flanged EN or ASME

MAX. OPERATING TEMPERATURE

195 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

R series heating coils
R series heating coils

The ADCA R series steam to water tubular heating coils are shorter and lighter than the alternative tubular heating coils manufactured with smooth pipes. The use of extruded low fin tube has the advantage that it can improve the external surface and thermal performance.

CONNECTIONS

Flanged EN or ASME
Threaded on request

MAX. OPERATING PRESSURE

16 bar

MAX. OPERATING TEMPERATURE

250 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

FCD
FCD

The ADCA flash condensing heads are designed to promote energy efficiency on new or existing systems. Mixing the flash steam with the boiler make-up water allows the energy within the flash steam to be fully absorbed into the water and therefore reduces energy waste that normally occurs from the discharge of flash steam through a vent. The main advantages over some traditional systems are that it is possible to make most of the piping connections in a single and compact mixing unit and that a greater heat recovery efficiency can be achieved.

MATERIAL

Stainless steel

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN or ASME
Different connections on request

MAX. ALLOWABLE PRESSURE

0,5 bar

MAX. RELATED TEMPERATURE

120 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

BEX Blowdown expansion and cooling units
BEX Blowdown expansion and cooling units

The ADCA BEX series blowdown expansion and cooling units are used in modern boiler houses to cool hot wastewater and steam boiler blowdown before discharging them into a pit or drain. The wastewater is discharged into the unit, which is at atmospheric pressure, and the cooling water enters through a control valve controlled by a thermostat, mixing it with the hot water. If flash steam can not be recovered or discharged to the atmosphere, an additional condensing water spray system (optional) can be supplied. It is fitted into the top of the unit and can be controlled directly, either by another thermostat or by the same command used for the automatic blowdown valve control.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN or ASME
Different connections on request

MAX. OPERATING PRESSURE

0,5 bar

MAX. ALLOWABLE TEMPERATURE

120 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

BV Blowdown expansion vessels
BV Blowdown expansion vessels

The ADCA BV series blowdown vessels are used in modern boiler houses to cool hot wastewater and steam boiler blowdown before discharging them into a pit or
drain. If flash steam can not be recovered or discharged to the atmosphere, an additional condensing water spray system (optional) can be supplied. It is fitted into the top of the unit and can be controlled by a thermostat.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Flanged EN PN16 or ASME
Different connections on request

MAX. ALLOWABLE PRESSURE

7 bar

MAX. ALLOWABLE TEMPERATURE

180 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

BFT
BFT

The BFT boiler feed tank is one of the most important devices in a boiler room. Its main function is to store the make-up water and condensate, assuring a reserve of treated water to supply to the steam boilers. The make-up water has to be softened to prevent scale formation on the boiler and the oxygen also has to be removed, so that corrosion in the boiler and steam system is avoided (this situation is normally handled by specialists). The consumption of chemicals used to eliminate the oxygen can be drastically reduced if you use one of the several ADCATherm thermal degasification processes (ADG, TDG, FCD) for the removal of oxygen and other non-condensable gases (mainly carbon dioxide). Even if you choose not to use one of the mentioned systems, the ADCATherm boiler feed tanks will always be optimized according to the existing needs, therefore being able to include water pre-heating, as well as other features obvious to a true steam expert, but not to a simple tank manufacturer.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Flanged EN or ASME
Sockets BSP or NPT
Different connections on request

MAX. ALLOWABLE PRESSURE

0,5 bar

MAX. ALLOWABLE TEMPERATURE

120 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

AS Centrifugal air and dirt separators
AS Centrifugal air and dirt separators

The AS series centrifugal air and dirt separators were designed to be used in the flow line of a hydronic heater or cooling system. The operation is based on the principle of centrifugal force, instead of relying on low-velocity separation, offering the advantage of efficient separation in a smaller vessel. The ADCA AS units provides maximum separation efficiency while minimizing space requirements. The inside strainer protects against any dirt present in the system such as sand, welding residues, etc. The strainer screen position has a particular advantage compared with external pipe strainers because the dirt is removed from the water flow and is collected in the reservoir bottom, avoiding pressure drop increase.

MATERIAL

Carbon, zinc plated and stainless steel body

SIZES

11/4” to 2” DN 32 to DN 300

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN16 or PN40
Flanged ASME Class 150 or 300
Special flanges upon request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

HCC Hot Condensate Coolers
HCC Hot Condensate Coolers

The HCC is a cooling device that allows the mixing of hot condensate with a lower temperature condensate, avoiding hammering. Condensate discharge from higher pressure lines (drip points, for instance) is often connected to low-pressure condensate lines, with lower temperatures. This sudden pressure drop will convert the sensible heat difference between the two fluid conditions into latent heat, generating flash steam. Flash steam has a much bigger volume than condensate and, when mixed with the cold condensate, it will cool suddenly, imploding and causing hammering (noise and vibration). The HCC avoids this phenomenon since it slowly cools down the hot condensate which circulates inside a coil, surrounded by cold condensate which circulates according to the thermo-siphon physical laws.

MATERIAL

Carbon and stainless steel

CONNECTIONS

Flanged EN PN16 or PN40
Flanged ASME Class 150 or 300
Others on request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

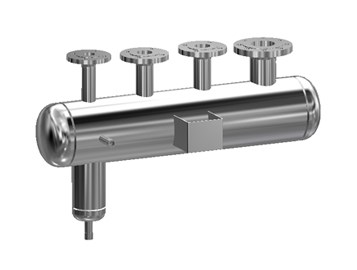

MAS Steam distribution manifold
MAS Steam distribution manifold

The MAS series steam distribution manifolds are essentially designed to allow the placement of steam supply valves in a single location, reducing costs and providing easy control of different steam lines. The drain connection, with an automatic steam trap installed, discharges any condensate formed, thus providing high-quality dry steam.

SIZES

DN 100 to DN 300

CONNECTIONS

Flanged EN PN16 or PN40
ASME Class 150 or 300
Threaded ISO 7 Rp or NPT on request

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

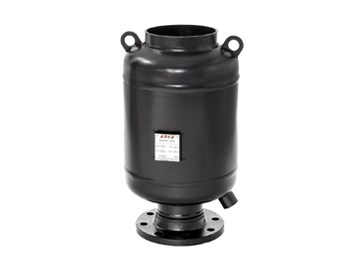

EH Exhaust heads
EH Exhaust heads

The EH series exhaust heads were designed to protect personnel from injury and exterior of buildings from harmful effects of steam ejection to atmosphere. The head is fitted at the end of a vertical exhaust pipe and effectively retains the moisture separated from the steam for draining.

MATERIAL

Carbon, zinc plated and stainless steel body

SIZES

1” to 4” DN 25 to DN 250

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN16 or ASME Class 150

MAX. ALLOWABLE PRESSURE

0,5 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

LIPO Lifting pot
LIPO Lifting pot

The LIPO series condensate lifting pots are used for rising condensate to elevated pipes, eliminating steam and water hammering. When the condensate is elevated to the condensate main at a higher level, the flash steam formed at a steam trap’s outlet condenses, due to contact with colder condensate and steam bubbles implode, reducing its volume while passing to the liquid state. The vacuum is then suddenly formed and, when filled again with the incoming condensate, it causes a water hammer. The air and flash steam cushion formed in the upper part of the lifting pot absorbs any shock, while in the bottom the condensate operates as a sealing liquid.

MATERIAL

Carbon and stainless steel

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN or ASME
Different connections on request

MAX. ALLOWABLE PRESSURE

18 bar

MAX. ALLOWABLE TEMPERATURE

250 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

Need Help

We're here to help and answer any questions you might have.
