DT40/2
DT40/2

The DT40/2 thermodynamic disc steam traps are compact and lightweight, easy to install traps, excellent for high pressure systems and steam tracing applications.
The insulation cover ensures a consistent operation and makes it particularly suitable for those applications where the weather conditions, such as rain and wind, may affect the normal operation.
These traps offer a wide operating range, without adjustment and include a bimetal air vent ring which reduces start-up time by preventing air binding.

MATERIAL

Stainless steel

SIZES

3/8” to 1” – DN 10 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME B16.11
Butt weld (BW) ASME B16.25 on request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC

FLOW RATE CAPACITY

Up to 740 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

DT42/2
DT42/2

The DT42/2 thermodynamic disc steam traps are compact and lightweight-easy to install traps, excellent for high pressure systems, including steam tracing applications.
These traps have only one moving part and offer a wide operating range, without adjustment.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

42 bar

MAX. OPERATING TEMPERATURE

300 ºC

FLOW RATE CAPACITY

Up to 1040 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

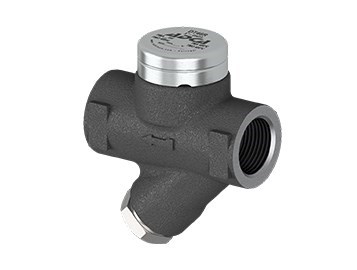

DT46
DT46

The DT46 thermodynamic disc steam traps are compact and lightweight, easy to install traps, excellent for high pressure systems and steam tracing applications.
The insulation cover ensures a consistent operation and makes it particularly suitable for those applications where the weather conditions, such as rain and wind, may affect the normal operation.
These traps offer a wide operating range, without adjustment and include a bimetal air vent ring which reduces start-up time by preventing air binding.

MATERIAL

Carbon steel

SIZES

1/2'' to 1'' – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN PN 40, PN 63 or PN 100
Flanged ASME Class 150, 300 or 600
Socket weld (SW) ASME B16.11

MAX. OPERATING PRESSURE

46 bar

MAX. OPERATING TEMPERATURE

400 ºC

FLOW RATE CAPACITY

Up to 800 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

SG IRON
SG IRON

FLT line of float and thermostatic steam traps manufactured in SG iron and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates and pressure drops, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT16
FLT16

The FLT16 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

SG iron

SIZES

1/2" and 3/4" – DN 15 and DN 20

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-2 PN 16

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 495 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT20
FLT20

The FLT20 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

SG iron

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1/-2 PN 16
Flanged ASME B16.42 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 595 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT21
FLT21

The FLT21 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

SG iron

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1/-2 PN 16
Flanged ASME B16.42 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 710 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT25
FLT25

The FLT25 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

SG iron

SIZES

1” – DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1/-2 PN 16
Flanged ASME B16.42 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 2490 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT27
FLT27

The FLT27 is a range of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

SG iron

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-2 PN 16
Flanged ASME B16.42 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 7300 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT29
FLT29

The FLT29 is a range of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

SG iron

SIZES

2” – DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-2 PN 16
Flanged ASME B16.42 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 22500 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT29TW
FLT29TW

The FLT29TW is a range of high capacity float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

SG Iron

SIZES

3” to 4” – DN 80 to DN 100

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 45000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

CARBON STEEL
CARBON STEEL

FLT line of float and thermostatic steam traps manufactured in carbon steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates and pressure drops, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT30
FLT30

The FLT30 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer.
Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 595 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT31
FLT31

The FLT31 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 710 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT35
FLT35

The FLT35 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

Carbon steel

SIZES

1” – DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 2490 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT37
FLT37

The FLT37 is a range of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and all applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

Carbon steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 7300 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT39
FLT39

The FLT39 is a range of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

Carbon steel

SIZES

2” – DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 22500 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT39TW
FLT39TW

The FLT39TW is a range of high capacity float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

Carbon steel

SIZES

3” to 4” – DN 80 to DN 100

CONNECTIONS

Flanged EN 1092-1 PN 16 or PN 40
Flanged ASME B16.5 Class 150 or 300

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 45000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

STAINLESS STEEL
STAINLESS STEEL

FLT line of float and thermostatic steam traps manufactured in stainless steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates and pressure drops, in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT40
FLT40

The FLT40 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 595 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT41
FLT41

The FLT41 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 710 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT45
FLT45

The FLT45 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.

MATERIAL

Stainless steel

SIZES

1” – DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 2490 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT47
FLT47

The FLT47 is a range of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

Stainless steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 7300 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT49
FLT49

The FLT49 is a range of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

Stainless steel

SIZES

2” – DN 50

CONNECTIONS

Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 22500 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT49TW
FLT49TW

The FLT49TW is a range of high capacity float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved.

MATERIAL

Stainless steel

SIZES

3” to 4” – DN 80 to DN 100

CONNECTIONS

Flanged EN 1092-1 PN 16 or PN 40
Flanged ASME B16.5 Class 150 or 300

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 45000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

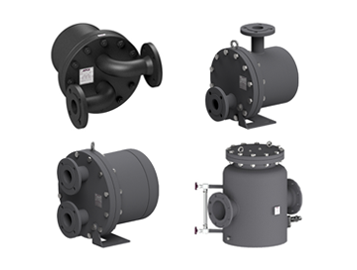

FABRICATED STEEL
FABRICATED STEEL

FLT line of float and thermostatic steam traps manufactured in fabricated carbon steel and designed for various high capacity applications. The available models cover a wide range of flow rates in various sizes, with different connections and multiple options to choose from.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

FLT22
FLT22

The FLT22 is a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.Specially designed for applications where continuous drainage is essential and high loads are involved.

MATERIAL

Carbon steel or stainless steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 25
Flanged ASME B16.5 Class 150 or 300

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 12050 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

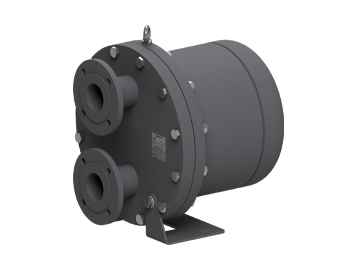

FLT312 / FLT314
FLT312 / FLT314

The FLT312 and FLT314 are a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.Specially designed for applications where continuous drainage is essential and high loads are involved.

MATERIAL

Carbon steel

SIZES

FLT312 – 2” ; DN 50
FLT314 – 21/2” ; DN 65

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 50000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

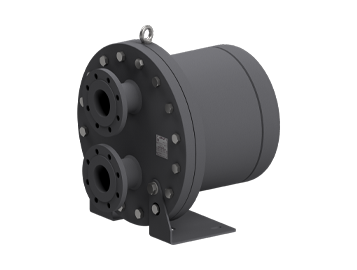

FLT314TW
FLT314TW

The FLT314TW is a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.Specially designed for applications where continuous drainage is essential and high loads are involved.

MATERIAL

Carbon steel

SIZES

3” – DN 80

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 100000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

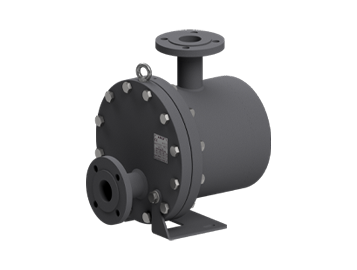

FLT50-FLT65S
FLT50-FLT65S

The FLT50 and FLT65 are a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.Specially designed for applications where continuous drainage is essential and high loads are involved.

MATERIAL

Carbon steel

SIZES

FLT50S – 2” to 21/2” ; DN 50 to DN 65
FLT65S – 21/2” to 4” ; DN 65 to DN 100

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 50000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

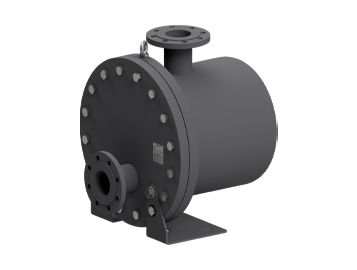

FLT80
FLT80

The FLT80 is a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.Specially designed for applications where continuous drainage is essential and high loads are involved.

MATERIAL

Carbon steel

SIZES

3” and 4” – DN 80 and DN 100

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 100000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

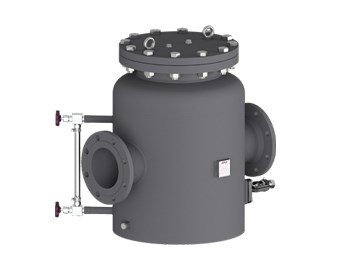

FLT151
FLT151

The FLT151 is a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.Specially designed for applications where continuous drainage is essential and extremely high loads are involved, such as those found in sugar and alcohol refineries.

MATERIAL

Carbon steel

SIZES

4” and 6” – DN 100 and DN 150

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 172900 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB12
IB12

The IB12 is a series of general purpose robust and versatile inverted bucket steam traps manufactured in SG iron. These steam traps operate intermittently and are suitable for use with saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MATERIAL

SG iron

SIZES

1/2” to 3/4” – DN 15 to DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 530 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IBB12
IBB12

The IBB12 is a series of general purpose robust and versatile inverted bucket steam traps manufactured in SG iron. These steam traps operate intermittently and are suitable for use with saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MATERIAL

SG iron

SIZES

3/4” to 1” – DN 20 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 1670 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB30
IB30

The IB30 is a series of general purpose robust and versatile inverted bucket steam traps. These steam traps operate intermittently and are suitable for use with saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB30S
IB30S

The IB30S is a series of general purpose robust and versatile inverted bucket steam traps manufactured in carbon steel. These steam traps operate intermittently and are suitable for use with saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MATERIAL

Carbon steel

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

300 ºC

FLOW RATE CAPACITY

Up to 530 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB30S
IB30S

The IB30 series inverted bucket steam traps are recommended for applications where the most important requirements are overall operating efficiency and long, trouble-free service life. They operate intermittently, either wide open or tightly closed and are, therefore, best suited for medium and high steam pressure applications.

MATERIAL

Carbon steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 25
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

220 ºC

FLOW RATE CAPACITY

Up to 3700 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB30SS
IB30SS

The IB30SS is a series of general purpose robust and versatile inverted bucket steam traps manufactured in stainless steel. These steam traps operate intermittently and are suitable for use with saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MATERIAL

Stainless steel

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

400 ºC

FLOW RATE CAPACITY

Up to 530 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB36
IB36

The IB36 is a series of robust and versatile inverted bucket steam traps. These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB36S
IB36S

The IB36S is a series of robust and versatile inverted bucket steam traps manufactured in carbon steel. These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11
Butt weld (BW) ASME B16.25 on request

MAX. OPERATING TEMPERATURE

400 ºC

FLOW RATE CAPACITY

Up to 610 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

IB36i
IB36i

The IB36i is a series of robust and versatile inverted bucket steam traps manufactured in stainless steel. These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11
Butt weld (BW) ASME B16.25 on request

MAX. OPERATING TEMPERATURE

400 ºC

FLOW RATE CAPACITY

Up to 610 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

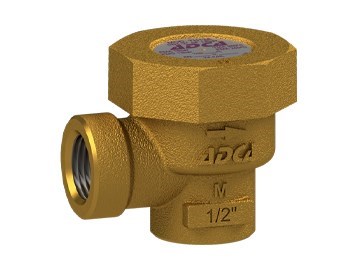

TH13A
TH13A

The TH13A series thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. Their small size makes them ideal for use with a wide variety of this equipment and especially as air eliminator.

MATERIAL

Brass

SIZES

1/2''

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

13 bar

MAX. OPERATING TEMPERATURE

200 ºC

FLOW RATE CAPACITY

Up to 360 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TSS22
TSS22

The TSS22 all stainless steel thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. Their small size makes them ideal for use with a wide variety of this equipment.

MATERIAL

Stainless steel

SIZES

1/4” to 1”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 795 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TH32
TH32

The TH32 line of thermostatic steam traps and air vents are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TH32Y
TH32Y

The TH32Y series thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 795 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TH32i
TH32i

The TH32i series thermostatic steam traps and air vents are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 795 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TH21
TH21

The TH21 series thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment.

MATERIAL

Carbon steel

SIZES

1/2” – DN 15

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 25
Flanged ASME Class 150
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 775 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TH (Multi-Thermostat)
TH (Multi-Thermostat)

TH thermostatic steam traps and air eliminators with multi-thermostat assemblies for higher discharge capacities. Specifically designed for use on process equipment such as sterilizers and food, chemical and laundry equipment.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TH35-2-3
TH35-2-3

The TH35 series thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment.

MATERIAL

Carbon steel

SIZES

1” – DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 2385 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TH36
TH36

The TH36 series thermostatic steam traps and air vents are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment where high discharge capacities are required.

MATERIAL

Carbon steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11
Butt weld (BW) ASME 16.25

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 4770 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TSW22
TSW22

The TSW22 all stainless steel thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. Their small size makes them ideal for use with a wide variety of this equipment.

MATERIAL

Stainless Steel Wafer Design

SIZES

DN 15 to DN 25

CONNECTIONS

Sandwiched between flanges
as per EN 1092-1 PN 16 or PN 40

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 795 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

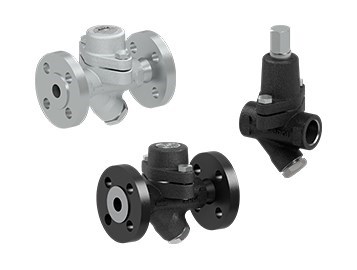

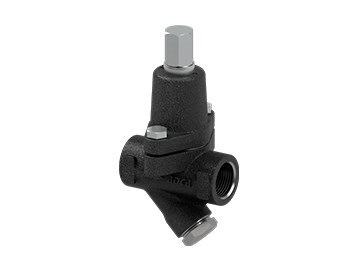

BM20
BM20

BM20 series bimetallic steam traps and air eliminators are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM20
BM20

The BM20 series bimetallic steam traps and air vents are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 1850 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM20i
BM20i

The BM20i is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11
Butt weld (BW) ASME B16.25 on request

FLOW RATE CAPACITY

Up to 1850 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM20R
BM20R

The BM20R series bimetallic steam traps and air vents are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 1840 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM24
BM24

BM24 series bimetallic steam traps and air eliminators are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM24 | DN 15 - 25
BM24 | DN 15 - 25

The BM24 series bimetallic steam traps and air vents are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

24 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 2680 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM24 | DN 40 - 50
BM24 | DN 40 - 50

The BM24 series bimetallic steam traps and air vents are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

MATERIAL

Carbon steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

24 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 9000 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM32
BM32

BM32 series bimetallic steam traps and air eliminators are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM32 | DN 15 - 25
BM32 | DN 15 - 25

The BM32 series bimetallic steam traps and air vents are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

300 ºC

FLOW RATE CAPACITY

Up to 2900 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM32 | DN 40 - 50
BM32 | DN 40 - 50

The BM32 series bimetallic steam traps and air vents are simple and robust traps, recommended for steam process applications where condensate sensible heat can be recovered, steam tracing lines, drip points, storage tank coils, steam air venting, etc. The use of condensate sensible heat reduces steam consumption.

MATERIAL

Carbon steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11
Butt weld (BW) ASME 16.25

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

300 ºC

FLOW RATE CAPACITY

Up to 3500 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM87
BM87

The BM87 is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting.

MATERIAL

Carbon steel

SIZES

1/2'' to 1'' – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40 or PN 63
Flanged ASME B16.5 Class 300 or 600
Socket weld (SW) ASME B16.11
Butt weld (BW) ASME B16.25

MAX. OPERATING PRESSURE

45 bar

MAX. OPERATING TEMPERATURE

425 ºC

FLOW RATE CAPACITY

Up to 4100 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM88
BM88

The BM88 is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting. Specially designed for draining high pressure superheated steam lines and processes.

MATERIAL

Carbon steel

SIZES

1/2'' to 1'' – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 100
Flanged ASME B16.5 Class 600
Socket weld ASME B16.11
Butt weld ASME B16.25

MAX. OPERATING PRESSURE

85 bar

MAX. OPERATING TEMPERATURE

500 ºC

FLOW RATE CAPACITY

Up to 5800 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM89
BM89

The BM89 is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting. Specially designed for draining high pressure superheated steam lines and processes.

MATERIAL

Carbon steel

SIZES

1/2'' to 1'' – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 160
Flanged ASME B16.5 Class 900
Socket weld ASME B16.11
Butt weld ASME B16.25

MAX. OPERATING PRESSURE

110 bar

MAX. OPERATING TEMPERATURE

525 ºC

FLOW RATE CAPACITY

Up to 6500 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM90
BM90

The BM90 is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting. Specially designed for draining high pressure superheated steam lines and processes.

MATERIAL

Carbon steel

SIZES

1/2" to 1" – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 250
Flanged ASME B16.5 Class 1500
Socket weld ASME B16.11
Butt weld ASME B16.25

MAX. OPERATING PRESSURE

160 bar

MAX. OPERATING TEMPERATURE

525 ºC

FLOW RATE CAPACITY

Up to 4500 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BSS20
BSS20

The BSS20 all stainless steel bimetallic steam traps and air vents are simple and robust traps, specially suited for instrument tracing, line tracing applications and where condensate sensible heat can be recovered. The use of condensate sensible heat reduces steam consumption. The BSS20 is especially suitably for air venting applications.

MATERIAL

Stainless steel

SIZES

1/2''

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

20 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 1120 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BM-HC
BM-HC

The BM–HC series of bimetallic steam traps and air vents are simple and robust traps, recommended for process applications where high loads are involved. Tailor made to meet application requirements and supplied with several bimetallic regulators in order to achieve the required discharge capacity for the application in hands.

MATERIAL

Carbon steel

SIZES

11/2” to 5” – DN 40 to DN 125

CONNECTIONS

Flanged EN 1092-1 PN 63
Flanged ASME B16.5 Class 900
Others on request

MAX. OPERATING PRESSURE

63 ºC

MAX. OPERATING TEMPERATURE

300 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

UCX41
UCX41

The UCX series pipeline connectors are used in steam systems where a simple and economic maintenance program is desired. Typical installations are drip service on steam lines, tracing applications and small process equipment. The two-bolt flange connector allows for fast trap replacement without disturbing the pipelines. The UCX connector fits the universal swivel connection steam traps.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp

MAX. ALLOWABLE PRESSURE

47,8 bar

MAX. ALLOWABLE TEMPERATURE

400 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

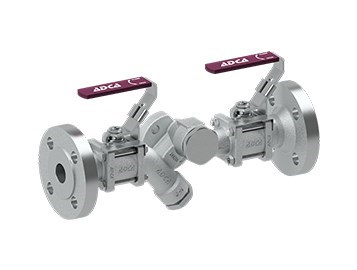

CTS4U
CTS4U

The CTS4U is designed as a complete and compact steam trap station, to be used in steam systems where a simplified and economic maintenance program is desired. It has been designed to replace the traditional multi-component trap station systems. Typical installations are drip service on steam lines, tracing and small process equipment. Two-bolt flange connector permits trap replacement in minutes without disturbing the piping. The CTS4U trapping station fits all universal swivel connector steam traps.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150

MAX. OPERATING PRESSURE

17,5 bar

MAX. OPERATING TEMPERATURE

230 ºC @ 10 bar
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

UDT46
UDT46

The UDT46 series thermodynamic steam traps are excellent for high-pressure systems, including steam tracing applications. The insulation cover ensures consistent operation and makes them particularly suitable for applications where the weather conditions may affect the normal operation.

MATERIAL

Stainless steel

SIZES

According to the connector

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

245 ºC

FLOW RATE CAPACITY

Up to 695 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

UIB36
UIB36

The UIB36 series inverted bucket steam traps, completely in stainless steel, are maintenance free and sealed. These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment. These traps fit the UCX universal connectors and CTS4U compact stations.

MATERIAL

Stainless steel

SIZES

According to the connector

MAX. OPERATING PRESSURE

27 bar

MAX. OPERATING TEMPERATURE

400 ºC

FLOW RATE CAPACITY

Up to 470 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

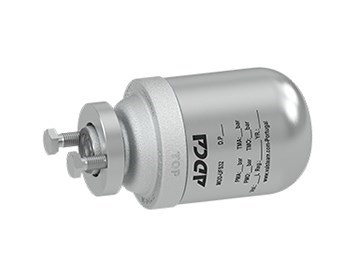

UFS32
UFS32

The UFS32 series float and thermostatic (integral air vent) steam traps are maintenance-free and sealed. They are specifically designed to work with low and medium pressure steam and all types of heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels, and all the applications where continuous drainage is essential.

MATERIAL

Stainless steel

SIZES

According to the connector

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

245 ºC

FLOW RATE CAPACITY

Up to 630 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

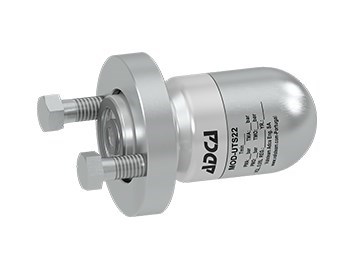

UTS22
UTS22

The UTS22 series thermostatic steam traps and air eliminators, completely in stainless steel, are maintenance-free and sealed traps. They are specifically designed to be used on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. These traps fit the UCX universal connectors and CTS4U compact stations.

MATERIAL

Stainless steel

SIZES

According to the connector

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

795 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

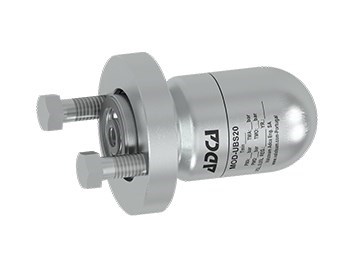

UBS20
UBS20

The UBS20 series bimetallic steam traps and air eliminators, completely in stainless steel, are maintenance-free and sealed traps. Simple and robust, they are recommended for drip service, steam tracing applications and where condensate sensible heat can be recovered. These traps fit the UCX universal connectors and CTS4U compact stations.

MATERIAL

Stainless steel

SIZES

According to the connector

MAX. OPERATING PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 1850 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

UCX90
UCX90

The UCX series pipeline connectors are used in steam systems where a simple and economic maintenance program is desired.
Typical installations are drip service on steam lines, tracing applications and small process equipment. The four-bolt flange connector allows for fast trap replacement without disturbing the pipelines. The UCX connector fits the universal four-bolt swivel connection steam traps.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 100
Flanged ASME B16.5 Class 600
Socket weld (SW) ASME B16.11
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

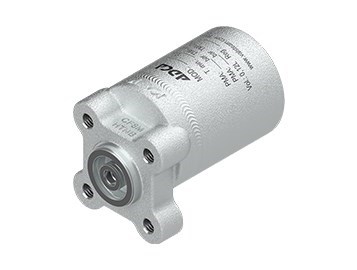

UBS90
UBS90

The UBS90 series bimetallic steam traps and air eliminators, completely in stainless steel, are maintenance free and sealed traps. Simple and robust, they are recommended for drip service, steam tracing applications and where condensate sensible heat can be recovered. These traps fit the UCX90 four bolt universal connectors.

MATERIAL

Stainless steel

SIZES

According to the selected pipeline connector

FLOW RATE CAPACITY

Up to 5400 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

CDV32
CDV32

The CDV32 condensate drain valve automatically discharges air and condensate from steam systems during start-up. A compression spring keeps the valve open when the system is not pressurized. As soon as the operating pressure reaches the closing pressure to which the CDV is set, the valve closes. If the operating pressure drops below the closing set pressure, the spring force will cause the CDV32 to open once again.

MATERIAL

Carbon steel

SIZES

1/2” to 3/4” – DN 15 to DN 20

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME B16.11
Butt weld (BW) ASME B16.25 on request

MAX. OPERATING PRESSURE

22 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 780 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

VB21M
VB21M

The VB21 vacuum breakers are simple and reliable devices that automatically relieve or “break” an unwanted vacuum condition, restoring the atmospheric pressure. This device is particularly suitable for steam heated units of small and medium volume, such as heat exchangers, heating coils, calorifiers, jacketed kettles, steam boilers, etc.

MATERIAL

Stainless steel

SIZES

1/2” x 1/8”

CONNECTIONS

VB21 – Female threaded ISO 7 Rp or NPT
VB21M – Male threaded ISO 228 G

LIMITING CONDITIONS

13 bar at 400 ºC
21 bar at 220 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

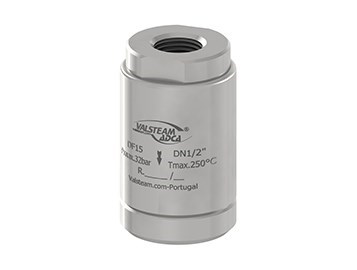

DF
DF

The ADCA DF series are compact noise diffusers designed to disperse the high-speed discharge from steam or air traps, dampening the noise levels and reducing erosion. These devices are typically installed downstream of intermittent steam traps, such as thermodynamic or inverted bucket, which are generally associated with high-speed blast discharges. Noise reductions greater than 80% can be expected when measured at 1 meter away from the source.

MATERIAL

Stainless steel

SIZES

1/2'' to 1''

CONNECTIONS

Threaded ISO 7 Rp

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

BDV
BDV

The BDV, AFZ and HVV vent valves are designed to drain (blowdown) or vent (depressurize) pipework, steam traps, valves and others.

BDV – Blowdown valves – Manual discharge of strainer screen contents and generally to be used as a drain and/or depressurization valve.

MATERIAL

Stainless steel

SIZES

3/8” and M22

CONNECTIONS

NPT-M
Threaded ISO 228 G
Metric fine pitch

MAX. OPERATING PRESSURE

42 bar

MAX. OPERATING TEMPERATURE

400 ºC
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

HVV
HVV

The BDV, AFZ and HVV vent valves are designed to drain (blowdown) or vent (depressurize) pipework, steam traps, valves and others.

HVV – Hand vent valves – Venting of float traps and generally to be used as a vent or depressurization valve.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

AFZ
AFZ

The BDV, AFZ and HVV vent valves are designed to drain (blowdown) or vent (depressurize) pipework, steam traps, valves and others.

AFZ – Anti-freeze device – Automatic discharge of condensate from steam traps, valves, pipelines and others, to prevent the condensate from freezing.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

UTT-100
UTT-100

The UTT – Ultrasonic Trap Tester is a battery-powered instrument that gives a visible and audible indication of ultrasonic frequencies. It provides easy, accurate leak detection and mechanical inspection through advanced ultrasonic technology. Before you begin testing, it is advisable to familiarize yourself with the basic components of your kit.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

Need Help

We're here to help and answer any questions you might have.

7 + 4 =
