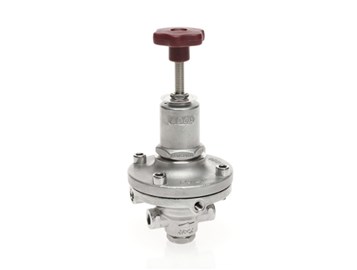

P7
P7

The ADCA P7 series direct-acting, spring-loaded diaphragm sensing pressure reducing valves, are designed for use with steam, compressed air and other gases compatible with the materials of construction. They are suitable for pressure reducing stations where very small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4” and 3/8”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

25 bar (steam)
31 bar (gases)

MAX. DESIGN TEMPERATURE

300 ºC

REGULATING RANGE

0,35 to 17 bar

FLOW RATE COEFFICIENTS

1 or 1,1 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

P20D
P20D

The ADCA P20D series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves are designed for use on compressed air, water and other gases or liquids compatible with the materials of construction. They are suitable for pressure reducing stations where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4” to 1/2”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

1,2 to 1,8 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

P20DS
P20DS

The ADCA P20DS series direct-acting, spring-loaded diaphragm sensing pressure reducing valves, are designed for use on steam, compressed air, and other gases or liquids compatible with the materials of construction. They are suitable for pressure reducing stations where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4” to 1/2”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

14 bar

MAX. DESIGN TEMPERATURE

200 ºC *

REGULATING RANGE

0,2 to 8 bar

FLOW RATE COEFFICIENTS

1,2 to 1,8 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

P20P
P20P

The ADCA P20D series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves are designed for use on compressed air, water and other gases or liquids compatible with the materials of construction. They are suitable for pressure reducing stations where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

220 bar

MAX. DESIGN TEMPERATURE

200 ºC *

REGULATING RANGE

0,2 to 200 bar

FLOW RATE COEFFICIENTS

0,043 to 0,62 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV25
PRV25

The ADCA PRV25/2S series, direct-acting pressure reducing valves, are designed for use on steam, compressed air, water and other gases and liquids. They are suitable for reducing steam pressure at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 1” – DN 15 a 25

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN 25
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

17 bar

MAX. DESIGN TEMPERATURE

Up to 210 ºC

REGULATING RANGE

0,35 to 8,6 bar

FLOW RATE COEFFICIENTS

1,7 to 3,1 Kvs (m3/h)

FLOW RATE CAPACITY

Carbon steel or stainless steel

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV30
PRV30

The ADCA PRV30 series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves, are designed for use on compressed air, water and other gases or liquids compatible with the construction materials. They are suitable for pressure reducing stations at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV30 | DN 15 - 20
PRV30 | DN 15 - 20

MATERIAL

Stainless steel

SIZES

1/2” and 3/4” – DN 15 and DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

2,1 or 2,4 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV30 | DN 25 - 32
PRV30 | DN 25 - 32

MATERIAL

Stainless steel

SIZES

1” and 11/4” – DN 25 and DN 32

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

6,5 or 7,2 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV30 | DN 40 - 50
PRV30 | DN 40 - 50

MATERIAL

Stainless steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

12,7 or 13,7 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV31
PRV31

The ADCA PRV31 series direct-acting, spring-loaded piston sensing, balanced plug pressure reducing valves, are designed for use on compressed air, water and other gases or liquids compatible with the materials of the construction. They are suitable for pressure reducing stations at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV31 | DN 15 - 20
PRV31 | DN 15 - 20

MATERIAL

Stainless steel

SIZES

1/2” and 3/4” – DN 15 and DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

3 or 3,5 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV31 | DN 25 - 32
PRV31 | DN 25 - 32

MATERIAL

Stainless steel

SIZES

1” and 11/4” – DN 25 and DN 32

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

7,5 or 8,2 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV31 | DN 40 - 50
PRV31 | DN 40 - 50

MATERIAL

Stainless steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

14,4 or 15,4 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV41SS
PRV41SS

The ADCA PRV41 series direct-acting, spring-loaded piston sensing, balanced plug pressure reducing valves, are designed for use on compressed air, water and other gases or liquids compatible with the materials of the construction. They are suitable for pressure reducing stations at the point of use on different industrial applications.

MATERIAL

Stainless steel

SIZES

1/4” to 1/2” – DN 15

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 to PN 320
Flanged ASME Class 150, 300 or 600

MAX. UPSTREAM PRESSURE

220 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 200 bar

FLOW RATE COEFFICIENTS

0,7 or 0,9 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV300
PRV300

The ADCA PRV300 series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves, are designed for use with compressed air, water and other gases and liquids compatible with the materials of construction. They are suitable for high accuracy pressure reducing stations at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV300 | DN 15 - 20
PRV300 | DN 15 - 20

MATERIAL

Stainless steel

SIZES

1/2” and 3/4” – DN 15 and DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. UPSTREAM PRESSURE

16 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,05 to 0,07 bar

FLOW RATE COEFFICIENTS

2,1 or 2,4 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV300 | DN 25 - 32
PRV300 | DN 25 - 32

MATERIAL

Stainless steel

SIZES

DN 25 and DN 32

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. UPSTREAM PRESSURE

16 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,05 to 1,7 bar

FLOW RATE COEFFICIENTS

6,5 or 7,2 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV300 | DN 40 - 50
PRV300 | DN 40 - 50

MATERIAL

Stainless steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. UPSTREAM PRESSURE

16 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,05 to 1,7 bar

FLOW RATE COEFFICIENTS

12,7 or 13,7 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RP45
RP45

The ADCA RP45 series pressure reducing valves are single seated, bellows sealed controllers that operate without auxiliary energy. Designed for use with steam, compressed air, and other gases compatible with the construction. They are particularly suitable for reducing steam pressure in all energy and process systems where pressures must be kept under control.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RP45 | ASME
RP45 | ASME

MATERIAL

Carbon steel

SIZES

1/2'' to 4''

CONNECTIONS

Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,15 to 13 bar

FLOW RATE COEFFICIENTS

4,8 to 129,5 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RP45 | EN
RP45 | EN

MATERIAL

SG Iron
Carbon steel
Stainless steel

SIZES

DN 15 to DN 150

CONNECTIONS

Flanged EN PN 16 or PN 40

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,15 to 18 bar

FLOW RATE COEFFICIENTS

4,8 to 204 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RP45 | Threaded
RP45 | Threaded

MATERIAL

Carbon steel or stainless steel

SIZES

1/2

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,15 to 18 bar

FLOW RATE COEFFICIENTS

4,8 to 9,1 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

POT
POT

The ADCA POT is specially designed to protect the actuator’s diaphragms of RP45 pressure regulators when the media temperature exceeds their maximum operating temperatures.

MATERIAL

Carbon steel or stainless steel

SIZES

3/8”

CONNECTIONS

Threaded ISO 7 Rp

MAX. UPSTREAM PRESSURE

40 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RP45TW
RP45TW

The ADCA RP45TW series pressure reducing station consists of two standard RP45 valves installed in parallel. This system is particularly recommended for installations where a single valve cannot reach the maximum required flow rate or when the consumption variation is significant, being prudent to install two smaller valves instead of a single one in order to avoid oversizing. This system is also recommended when it is vital that the steam supply is not interrupted.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV47
PRV47

The ADCA PRV47 pilot operated pressure reducing valves are designed for use with steam, compressed air, nitrogen and other gases compatible with the construction materials. The PRV47 can be installed in pressure reducing stations throughout all industries and provides sensitive and accurate control even when inlet pressure fluctuations or flow variations occur.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket Weld (SW) ASME B16.11

MAX. UPSTREAM PRESSURE

31 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,07 to 17 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PRV47-2
PRV47-2

The ADCA PRV47/2 pilot operated pressure reducing valves are designed for use with steam, compressed air, nitrogen and other gases compatible with the construction materials. The PRV47/2 can be installed in pressure reducing stations throughout all industries, and provide sensitive and accurate control even when inlet pressure fluctuations or relevant flow variations occur.

MATERIAL

Carbon steel or stainless steel

SIZES

DN 65 to DN 100

CONNECTIONS

Flanged EN PN 16 or PN 40

MAX. UPSTREAM PRESSURE

31 bar
28 bar (steam)

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,07 to 17 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RP4
RP4

The ADCA RP4 series pressure regulating valves are single seated, operated without auxiliary energy, designed for use on water and other liquids compatible with the construction. They are particularly suitable for reducing or sustaining water pressure in all industrial process systems where pressures should be kept constant.

MATERIAL

Carbon steel or stainless steel

SIZES

DN 32 to DN 100

CONNECTIONS

Flanged EN PN 16 or PN 40
ASME on request

MAX. ALLOWABLE PRESSURE

Up to 40 bar

MAX. RELATED TEMPERATURE

Até 400 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

RP6
RP6

The ADCA RP6 series pressure regulating valves are single seated balanced plug, operated without auxiliary energy, designed for use on gases and liquids compatible with the construction. They are particularly suitable for reducing or sustaining pressure in all industrial process systems where pressures should be kept constant.

MATERIAL

Carbon steel or stainless steel

SIZES

DN 32 to DN 100

CONNECTIONS

Flanged EN PN 16 or PN 40
ASME on request

MAX. ALLOWABLE PRESSURE

Up to 40 bar

MAX. RELATED TEMPERATURE

Até 400 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS4
PS4

The ADCA PS4 series direct-acting, spring-loaded diaphragm sensing, pressure sustaining valves are designed for use on compressed air, water, and other gases or liquids compatible with the materials of the construction. This valve's main purpose is to maintain the upstream pressure under control. They are suitable for pressure sustaining applications where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

15 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,35 to 17 bar

FLOW RATE COEFFICIENTS

3,6 or 3,7 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS7
PS7

The ADCA PS7 series direct-acting, spring-loaded diaphragm sensing pressure sustaining valves are designed for use with steam, compressed air and other gases compatible with the materials of construction. They are suitable for pressure sustaining applications where very small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Carbon steel or stainless steel

SIZES

1/4” and 3/8”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

17 bar

MAX. DESIGN TEMPERATURE

300 ºC

REGULATING RANGE

0,35 to 17 bar

FLOW RATE COEFFICIENTS

0,8 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS30
PS30

The ADCA PS30 series direct-acting, spring-loaded diaphragm sensing, pressure sustaining valves are designed for use on compressed air, water, and other gases or liquids compatible with the materials of the construction. They are suitable for pressure sustaining applications where low capacity is required. This valve's main purpose is to maintain the upstream pressure under control.

MATERIAL

Stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

15 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

2,1 to 13,7 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS31
PS31

The ADCA PS31 series direct-acting, spring-loaded piston sensing, pressure sustaining valves are designed for use on compressed air, water, and other gases or liquids compatible with the materials of the construction. They are suitable for pressure sustaining applications where low capacity is required. This valve's main purpose is to maintain the upstream pressure under control.

MATERIAL

Stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

3 to 15,4 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS45
PS45

The ADCA PS45 series pressure sustaining valves are single-seat bellows sealed controllers, operating without auxiliary energy, designed for use on steam, compressed air, and other gases compatible with the construction. They are particularly suitable for sustaining steam pressure in all energy and process systems where upstream pressures must be kept under control.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS45 | ANSI
PS45 | ANSI

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 4”

CONNECTIONS

Flanged ASME Class 150 and 300

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC

FLOW RATE COEFFICIENTS

4,8 to 129,5 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS45 | EN
PS45 | EN

MATERIAL

SG Iron, cast and stainless steel

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN PN16 – PN40
ASME on request

MAX. UPSTREAM PRESSURE

13 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC

FLOW RATE COEFFICIENTS

4,8 to 129,5 Kvs (m3/h)

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

PS47
PS47

The ADCA PS47 pilot operated pressure sustaining valves are designed for use with steam, compressed air, nitrogen and other gases compatible with the construction materials. The PS47 accurately senses upstream pressure and acts to precisely control it to a minimum or disperse excess pressure.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Flanged EN PN 40
Flanged ASME Class 150 or 300
Female threaded ISO 7 Rp or NPT
Socket weld (SW) ASME B16.11

MAX. UPSTREAM PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,07 to 17 bar

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

Need Help

We're here to help and answer any questions you might have.
