ISC16
ISC16

The ISC16 high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves. Up to 3” / DN 80, they are joined by a food industry fitting according to DIN 11851 and the larger sizes DN 100 to DN 200 by flat flanges fixed with bolts and nuts.

SIZES

1/4” to 3”DN 10 to DN 80 (DN 100 to DN 200 on request)

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN16 and ASME Class 150
Welded ends and other connections on request

MAX. OPERATING PRESSURE

10 bar @ 200 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

ISC20I
ISC20I

The ISC20I high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves, joined by a sanitary clamp ferrule according to DIN 32676 Series A, with drain connection on bottom.

SIZES

1/4” to 2”. DN 10 to DN 80

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN16 and ASME Class 150
Welded ends and other connections on request

MAX. OPERATING PRESSURE

10 bar @ 200 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

ISH10I
ISH10I

The ISH10I high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves and are joined by a sanitary clamp ferrule according to DIN 32676 Series A.

SIZES

1/2” to 2”. DN 10 to DN 50

CONNECTIONS

Sanitary clamp ferrules
Welded ends, threaded, flanged DIN or ASME on request

MAX. OPERATING PRESSURE

10 bar @ 200 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3HP
M3HP

M3HP three piece body ball valves are isolating valves designed for use with clean steam, condensate and other gases and liquids used in high purity and aseptic processes. The valve is not designed as a control valve and should only be used as an isolating valve, fully open or fully closed. The product is mainly designed for the pharmaceutical, biotech, semiconductor, cosmetics, fine chemical, food and beverage industries.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

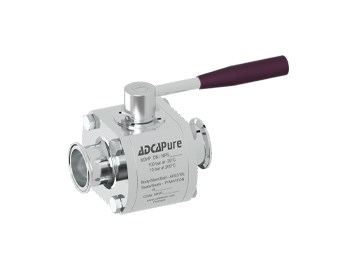

M3HP | DN10 - 50 DIN
M3HP | DN10 - 50 DIN

MATERIAL

Stainless steel body

SIZES

DN 10 to DN 50

CONNECTIONS

According to DIN tube

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN63 or PN100

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3HP | DN15 - 50 BPE
M3HP | DN15 - 50 BPE

MATERIAL

Stainless steel body

SIZES

1/2” to 2”

CONNECTIONS

According to ASME BPE

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN63 or PN100

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3HP | DN150 BPE
M3HP | DN150 BPE

MATERIAL

Stainless steel body

SIZES

6”

CONNECTIONS

According to ASME BPE

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

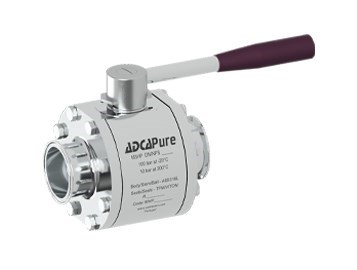

M3HP | DN 65 - 100 BPE
M3HP | DN 65 - 100 BPE

MATERIAL

Stainless steel body

SIZES

21/2” to 4”

CONNECTIONS

According to ASME BPE

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN40

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3HP | DN 65 - 100 DIN
M3HP | DN 65 - 100 DIN

MATERIAL

Stainless steel body

SIZES

DN 65 to DN 100

CONNECTIONS

According to DIN tube

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN40

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3H
M3H

M3H three pieces body ball valves are isolating valves designed for use with clean steam, condensate and other gases and liquids used in high purity and aseptic processes. The valve is not designed as a control valve and should only be used as an isolating valve, fully open or fully closed. The product is mainly designed for the pharmaceutical, biotech, semiconductor, cosmetics, fine chemical, food and beverage industries.

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

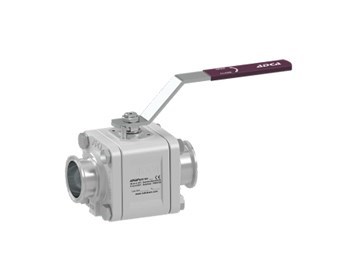

M3H | DN 10 – 50 DIN
M3H | DN 10 – 50 DIN

MATERIAL

Stainless steel body

SIZES

DN 10 to DN 50

CONNECTIONS

According to DIN tube

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN63 or PN100

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3H | 1/2” – 2” ASME BPE
M3H | 1/2” – 2” ASME BPE

MATERIAL

Stainless steel body

SIZES

1/2” to 2”

CONNECTIONS

According to ASME BPE

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN63 or PN100

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3H | 6” ASME BPE
M3H | 6” ASME BPE

MATERIAL

Stainless steel body

SIZES

6”

CONNECTIONS

According to ASME BPE

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

M3H | 21/2” – 4” ASME BPE
M3H | 21/2” – 4” ASME BPE

MATERIAL

Stainless steel body

SIZES

21/2” to 4”

CONNECTIONS

According to ASME BPE

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN40

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

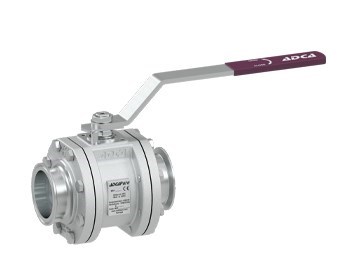

M3H | DN 65 – 100 DIN
M3H | DN 65 – 100 DIN

MATERIAL

Stainless steel body

SIZES

DN 65 to DN 100

CONNECTIONS

According to DIN 11850 tube

MAX. OPERATING PRESSURE

100 bar

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN40

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

SRT10
SRT10

The SRT10 all stainless steel disc check valve has a compact design and is specially designed for use with clean steam, hot condensate and other process fluid applications. They are particularly recommended for high purity applications.

MATERIAL

Stainless steel

SIZES

1/2” to 4”

CONNECTIONS

Clamp ferrules or others on request

MAX. OPERATING TEMPERATURE

200 ºC

RATING

PN10

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

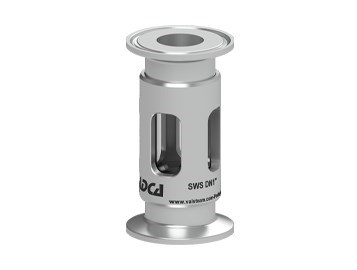

SWS
SWS

The SWS sanitary sight glasses are designed to monitor liquid flow in any direction. Sight glasses (or flow indicators) are usually employed to detect either the presence or absence of fluid flow, turbulence, colour, etc. They are especially recommended for high purity applications.

MATERIAL

Stainless steel body

SIZES

1/2” to 4”

CONNECTIONS

Clamp ferrules or others on request

MAX. OPERATING TEMPERATURE

200 ºC

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

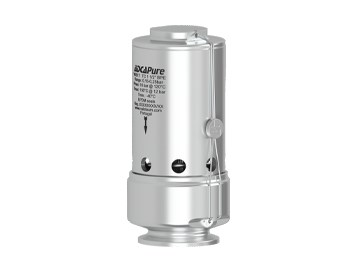

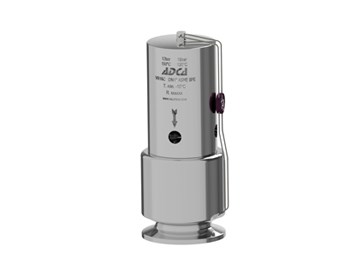

VB16C
VB16C

The VB16C vacuum breakers are simple and reliable devices that automatically relieve or “break” an unwanted vacuum condition, restoring the atmospheric pressure. This device is particularly suitable for steam heated units of small and medium volume, such as heat exchangers, heating coils, calorifiers, jacketed kettles, steam boilers, etc.

MATERIAL

Stainless steel body

SIZES

1” – DN 25

CONNECTIONS

ASME BPE, DIN and ISO
Clamp ferrules or others on request

MAX. OPERATING PRESSURE

13 bar @ 38ºC

MAX. OPERATING TEMPERATURE

170 ºC

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.
