TSS7
TSS7

The ADCAPure TSS7 all stainless steel thermostatic steam traps and air vents are specifically designed for use in hygienic applications such as reactors, CIP/SIP, autoclaves, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal for use with a wide variety of equipment.

MATERIAL

Stainless steel

SIZES

1/2" to 1"

CONNECTIONS

ASME BPE clamp ferrules

MAX. OPERATING PRESSURE

6 bar

MAX. OPERATING TEMPERATURE

165 ºC

FLOW RATE CAPACITY

Up to 1436 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

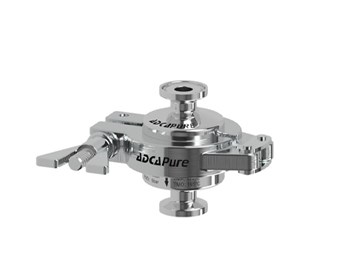

TSS6
TSS6

The ADCAPure TSS6 all stainless steel thermostatic steam traps and air vents are specifically designed for use in hygienic applications such as reactors, CIP/SIP, autoclaves, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal for use with a wide variety of equipment.

MATERIAL

Stainless steel

SIZES

1/2" to 11/2" – DN 08 to DN 25

CONNECTIONS

ASME BPE, DIN and ISO clamp ferrules or tube weld (ETO) ends

MAX. OPERATING PRESSURE

6 bar

MAX. OPERATING TEMPERATURE

165 ºC

FLOW RATE CAPACITY

Up to 1682 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TSS6H
TSS6H

The ADCAPure TSS6H all stainless steel thermostatic steam traps and air vents are specifically designed for use in hygienic applications such as reactors, CIP/SIP, autoclaves, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal for use with a wide variety of  equipment. The thermostatic element is very sensitive and designed to open with a minimum sub-cooling of approximately 2 ºC related to the saturated steam temperature.

MATERIAL

Stainless steel

SIZES

1/2" to 11/2"

CONNECTIONS

ASME BPE clamp ferrules

MAX. OPERATING PRESSURE

6 bar

MAX. OPERATING TEMPERATURE

165 ºC

FLOW RATE CAPACITY

Up to 4966 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.

TSS6A
TSS6A

The ADCAPure TSS6A all stainless steel thermostatic steam traps and air vents are specifically designed for use in hygienic applications such as reactors, CIP/SIP, autoclaves, sterilizers and distribution lines in clean and pure steam systems. Their small size makes them ideal for use with a wide variety of equipment.

MATERIAL

Stainless steel

SIZES

1/2" and 3/4"

CONNECTIONS

ASME BPE clamp ferrules

MAX. OPERATING PRESSURE

6 bar

MAX. OPERATING TEMPERATURE

165 ºC

FLOW RATE CAPACITY

Up to 1682 kg/h
Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to help you.
