PV926A
PV926A

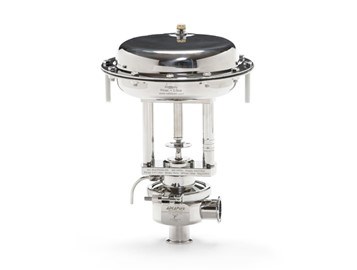

The PV926A aseptic control valves are single seated, two-way body constructed with angle connections. The PA pneumatic actuator features a rubber diaphragm and multi springs. Its action can be DA - direct action (air to close) or RA – reverse action (air to open). The PV926A valves have been designed to ensure accurate control in any process condition. The self-draining design is ideally suited for clean steam service applications.

MATERIAL

Stainless steel body

SIZES

1/2” to 2”

CONNECTIONS

ASME BPE
Clamp ferrules or tube weld ends
Others on request

MAX. OPERATING PRESSURE

13 bar @ 38ºC

MAX. OPERATING TEMPERATURE

170 ºC

CAPACITIES

0,1 to 34,7 Kvs (m3/h)

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PV926H
PV926H

The PV926H hygienic control valves are single seated, two-way body constructed with angle connections. The PA pneumatic actuator features a rubber diaphragm and multi springs. Its action can be DA - direct action (air to close) or RA - reverse action (air to open). The PV926H valves have been designed to ensure accurate control in any process condition. Their self-draining design is ideally suited for clean steam service applications.

MATERIAL

Stainless steel body

SIZES

1/2” to 4”

CONNECTIONS

Clamp ferrules or tube weld ends
Others on request

MAX. OPERATING PRESSURE

13 bar @ 38ºC

MAX. OPERATING TEMPERATURE

170 ºC

CAPACITIES

0,1 to 136,7 Kvs (m3/h)

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.

PV928
PV928

The PV928 are two or three-way control valves with angle connections, specially designed for food, chemical, pharmaceutical and cosmetic industries among others. The PA pneumatic actuator features a rubber diaphragm and multi-springs. Its action can be DA - direct action (air to close) or RA-reverse action (air to open). The PV928 valves have been designed to ensure an accurate control in any process condition and they have self draining design.

MATERIAL

Stainless steel body

SIZES

DN 15 to DN 100

CONNECTIONS

DIN threads, clamp ferrules or tube weld ends. Others on request.

MAX. OPERATING PRESSURE

13 bar @ 38ºC

MAX. OPERATING TEMPERATURE

170 ºC

CAPACITIES

0,1 to 136,7 Kvs (m3/h)

RATING

PN16

Ask for info

Whether you have a question about products, pricing, customized equipment, or anything else, our team is ready to answer all your questions.
