POP
POP

The ADCAMAT POP (Pressure Operated Pump), fabricated in carbon steel (stainless steel on request), is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

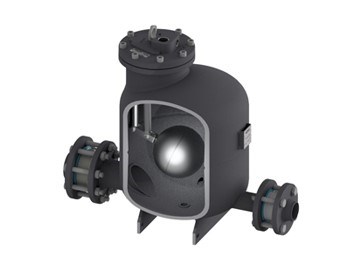

POP | DN 25 - 80
POP | DN 25 - 80

The ADCAMat POP pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

MATIERE

Acier au carbone ou inox

TAILLES

1'' x 1'' à 3" x 2"
DN 25 x 25 à DN 80 x 50

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp

PRESSION MAXIMALE MOTRICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

185 ºC

CAPACITÉ DE DÉBIT

Jusqu'à 6080 kg/h
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

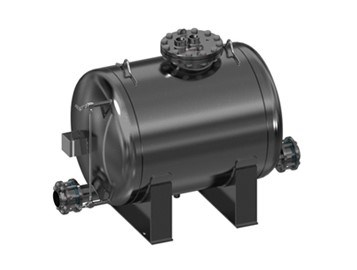

POP | DN 100
POP | DN 100

The ADCAMat POP pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel.

MATIERE

Acier au carbone

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp

PRESSION MAXIMALE MOTRICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

185 ºC

CAPACITÉ DE DÉBIT

Jusqu'à 29800 kg/h
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

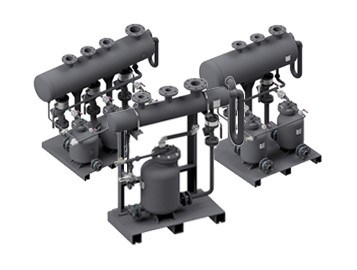

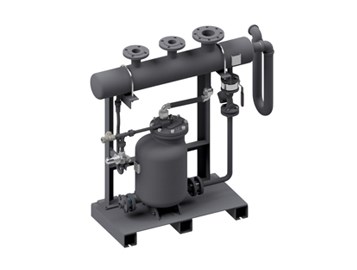

POPS-K
POPS-K

The POPS-K packaged pump units can be used to lift or displace hot condensate and other liquids even in hazardous areas.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

POPS-K (Simplex)
POPS-K (Simplex)

A POPS-K packaged unit is comprised by an ADCAMat pump, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection. Packaged units save time, work and site costs. In addition, they ensure that the installation of the pump is correct in every detail.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

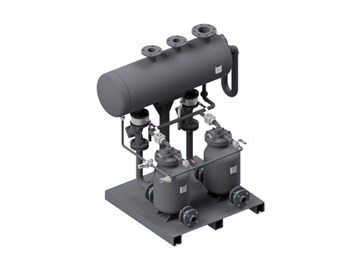

POPS-KD (Duplex)
POPS-KD (Duplex)

A POPS-KD (Duplex) packaged unit is comprised by two ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

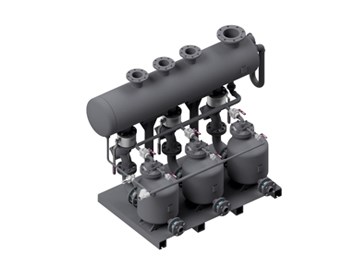

POPS-KT (Triplex)
POPS-KT (Triplex)

A POPS-KT (Triplex) packaged unit is comprised by three ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

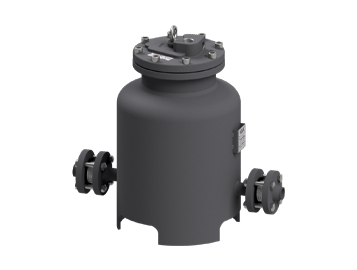

POP-LC
POP-LC

The ADCAMat POP-LC low capacity pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure.The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp

PRESSION MAXIMALE MOTRICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

185 ºC

CAPACITÉ DE DÉBIT

Jusqu'à 2195 kg/h
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

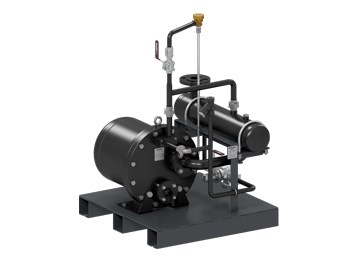

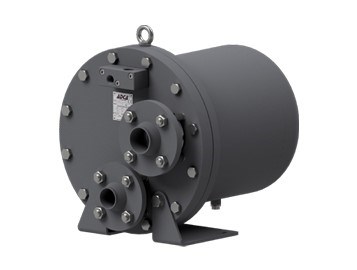

PPT14
PPT14

The ADCAMat PPT14 automatic pump trap is especially recommended where stall condition may occur due to poor steam trap condensate discharge capacity, caused by temporary insufficient pressure drop.
The equipment combines the features of a float steam trap and a pressure operated pump, in one single unit.

MATIERE

Acier au carbone or inox

TAILLES

11/2” x 1” et 2” x 11/2”
DN 40 x 25 et DN 50 x 40

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

APST
APST

The ADCAMat APST automatic pump trap is especially recommended where stall condition may occur due to poor steam trap condensate discharge capacity, caused by temporary insufficient pressure drop.
The equipment combines the features of a float steam trap and a pressure operated pump, in one single unit.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp

PRESSION MAXIMALE MOTRICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

185 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

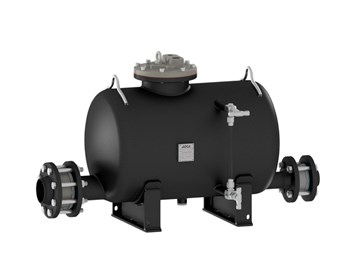

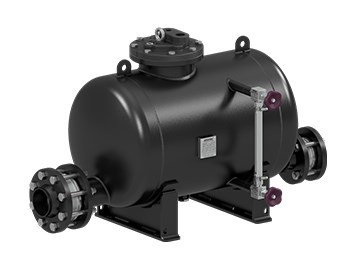

PPA312
PPA312

The ADCAMat PPA312 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

MATIERE

Acier au carbone

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp

PRESSION MAXIMALE MOTRICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

185 ºC

CAPACITÉ DE DÉBIT

Jusqu'à 7540 kg/h
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

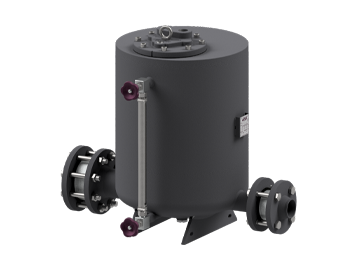

PPA14
PPA14

The ADCAMat PPA14 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

MATIERE

Acier au carbone

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp

PRESSION MAXIMALE MOTRICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

185 ºC

CAPACITÉ DE DÉBIT

Jusqu'à 6290 kg/h
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

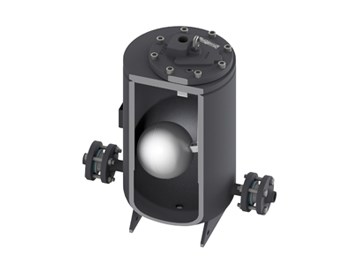

PPO14
PPO14

The ADCAMat PPO14 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride EN 1092-1 PN 16
Bride ASME B16.5 Class 150
Taraudée ISO 7 Rp

PRESSION MAXIMALE MOTRICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

185 ºC

CAPACITÉ DE DÉBIT

Jusqu'à 4000 kg/h
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

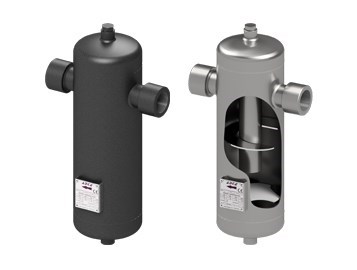

S16
S16

The S16 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impacts and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

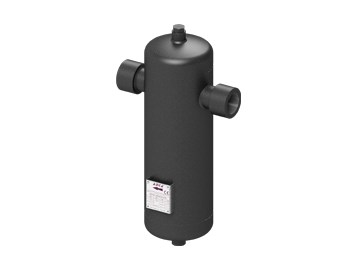

S16S
S16S

MATIERE

Acier au carbone

TAILLES

1/2” à 2”

CONNEXIONS

Filetage femelle ISO 7 Rp ou NPT

INDICE

PN 16 et PN 40
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

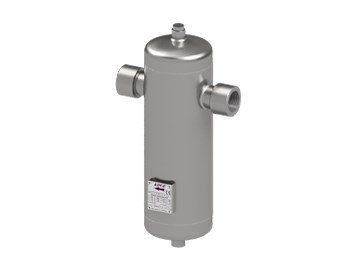

S16SS
S16SS

MATIERE

Inox

TAILLES

1/2” à 2”

CONNEXIONS

Filetage femelle ISO 7 Rp ou NPT

INDICE

PN 16 et PN 40
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

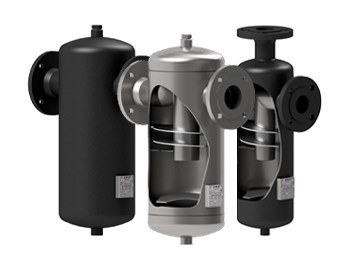

S25S
S25S

The S25 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impacts and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

S25S | PN16 - PN40
S25S | PN16 - PN40

MATIERE

Acier au carbone

TAILLES

DN 15 à DN 300

CONNEXIONS

Bride EN PN 16 ou PN 40
Bride ASME Classe 150 ou 300

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

S25S | PN63
S25S | PN63

MATIERE

Acier au carbone

TAILLES

DN 15 à DN 200

CONNEXIONS

Bride EN PN 63
Bride ASME Classe 600
Soudage par emboîtement (SW) ASME

PRESSION MAXIMALE DE SERVICE

58 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

S25SS
S25SS

MATIERE

Acier au carbone or acier zingué

TAILLES

DN 15 à DN 300

CONNEXIONS

Bride EN PN 16 ou PN 40
ASME Classe 150 ou 300

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

S25/S HV / S25/S VH
S25/S HV / S25/S VH

MATIERE

Inox

TAILLES

DN 15 à DN 200

CONNEXIONS

Bride EN PN 16 ou PN 40
ASME Classe 150 ou 300

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

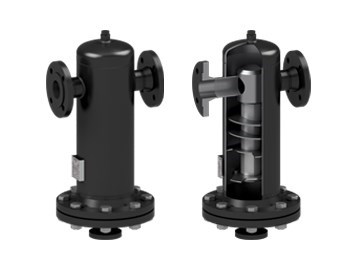

SF251/S
SF251/S

The SF251/S series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

MATIERE

Acier au carbone

TAILLES

DN 15 à DN 100

CONNEXIONS

Bride EN PN 16 ou PN 40
Bride ASME Classe 150 ou 300

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

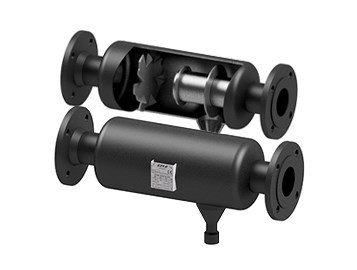

SH25
SH25

The SH25/S series horizontal centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

MATIERE

Corps en acier au carbone

TAILLES

1/2” à 6” – DN 15 à DN 150

CONNEXIONS

Bride EN PN16 ou PN40
Bride ASME Classe 150 ou 300

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC

INDICE

PN 16 ou PN 40
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

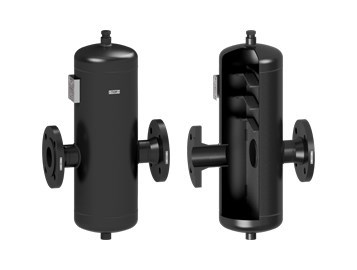

S30
S30

The S30 series baffle separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of expansion, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale, are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

MATIERE

Acier au carbone or acier zingué

TAILLES

DN 15 à DN 300

CONNEXIONS

Bride EN PN16 ou PN40
Bride ASME Classe 150 ou 300
Taraudée ISO 7 Rp ou NPT sur demande

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC

INDICE

PN16 ou PN40
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

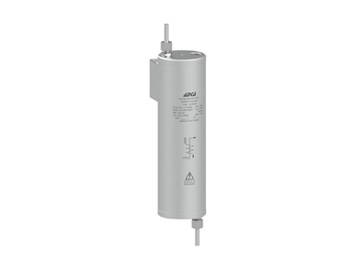

SC32 / SC132
SC32 / SC132

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATIERE

Corps et bobine en inox

TAILLES ET CONNEXIONS

Entrée / sortie d'eau de refroidissement: 1/2 ”sur le corps (BSP ou NPT)
Entrée / sortie du tube échantillon: 8 mm O / D

PRESSION MAXIMALE DE SERVICE

20 bar (corps)
110 bar (bobine)

TEMPÉRATURE MAXIMALE

120 ºC (corps)
450 ºC (bobine)
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

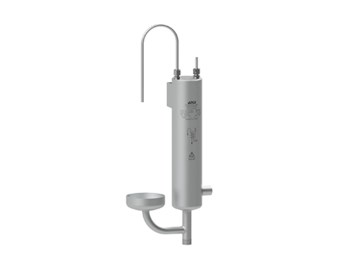

SC32F / SC132F
SC32F / SC132F

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect water sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATIERE

Corps et bobine en inox

TAILLES ET CONNEXIONS

Entrée du corps d'eau de refroidissement 1/2 ”, sortie 3/4” (BSP ou NPT)
Entrée / sortie du tube échantillon: 8 mm O / D

PRESSION MAXIMALE DE SERVICE

20 bar (corps)
110 bar (bobine)

TEMPÉRATURE MAXIMALE

120 ºC (corps)
450 ºC (bobine)
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

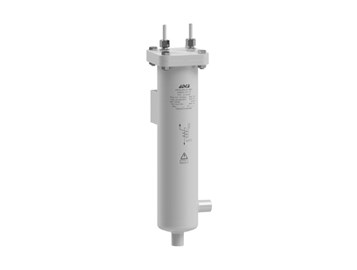

SC32B / SC132B
SC32B / SC132B

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATIERE

Corps et bobine en inox

TAILLES ET CONNEXIONS

Entrée du corps d'eau de refroidissement 1/2 ”, sortie 1/2” (BSP ou NPT)
Entrée / sortie du tube d'échantillon: 8 mm O / D

PRESSION MAXIMALE DE SERVICE

20 bar (corps)
110 bar (bobine)

TEMPÉRATURE MAXIMALE

120 ºC (corps)
450 ºC (bobine)
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

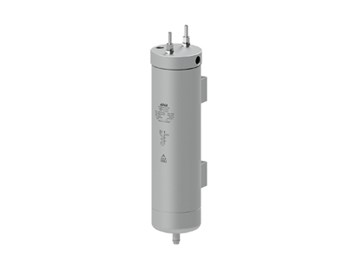

SC332 – SC532
SC332 – SC532

The ADCA sample coolers were specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurised liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

MATIERE

Corps et bobine en inox

TAILLES ET CONNEXIONS

Entrée / sortie d'eau de refroidissement: 1/2 ”ou 3/4 '' (BSP ou NPT)
Entrée / sortie du tube d'échantillon: 10 mm O / D

PRESSION MAXIMALE DE SERVICE

20 bar (corps)
Jusqu'à 280 bar (bobine)

TEMPÉRATURE MAXIMALE

120 ºC (corps)
Jusqu'à 550 ºC (bobine)
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

DSH
DSH

The ADCA DSH series of direct steam injection humidifiers are designed to ensure highly efficient and moisture free steam injection in air ducts and AHU for humidification purposes. These units are completely manufactured from corrosion resistant stainless steel, and are available as plug and play packaged solutions or alternatively as individual components to be incorporated into humidification systems.

MATIERE

Inox

TAILLES

1/2”, 1” et 11/4”

CONNEXIONS

Filetage femelle ISO 7 Rp ou NPT
Connexions à brides et spéciales sur demande
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

SI20
SI20

The ADCAMix SI20 is a series of direct steam injectors designed for low noise heating of still or flowing mediums, inside basins and vessels.

TAILLES

3/4”

CONNEXIONS

Female screwed ISO 7/1 Rp

PRESSION MAXIMALE DE SERVICE

8,5 bar

TEMPÉRATURE MAXIMALE DE SERVICE

180 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

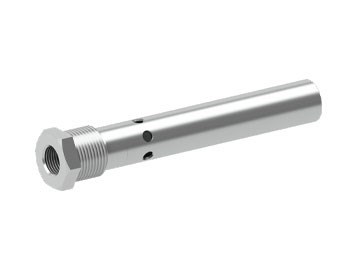

SI115
SI115

The ADCAMix SI115 is a series of direct steam injectors designed for rapid heating of still or flowing mediums, inside basins and vessels. Steam enters through the inlet connection, passes along the center of the device and mixes with the cool medium, which is drawn in through radial holes.

MATIERE

Inox austénitique

TAILLES

1/2”

CONNEXIONS

Taraudée ISO 7 Rp

PRESSION MAXIMALE DE SERVICE

17 bar

TEMPÉRATURE MAXIMALE DE SERVICE

95 ºC

INDICE

PN 25
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

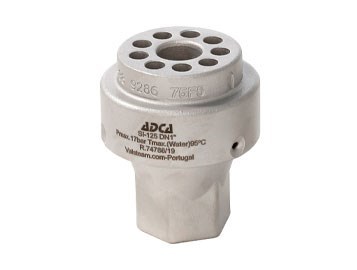

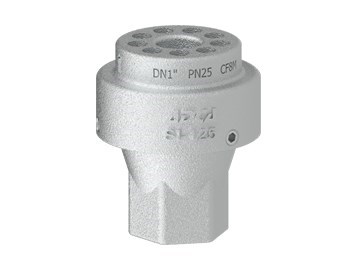

SI125 / SI140
SI125 / SI140

The ADCAMix SI125 and SI140 is a series of direct steam injectors designed for rapid heating of still or flowing mediums, inside basins and vessels. Steam enters through the inlet connection, passes along the center of the device and mixes with the cool medium, which is drawn in through radial holes.

MATIERE

Inox austénitique

TAILLES

1” et 11/2”

CONNEXIONS

Taraudée ISO 7 Rp

PRESSION MAXIMALE DE SERVICE

17 bar

TEMPÉRATURE MAXIMALE DE SERVICE

95 ºC

INDICE

PN25
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

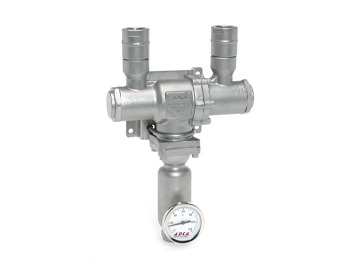

MX20
MX20

The ADCAMix MX20 is a series of steam/water mixers designed to provide a cheap and instantaneous source of low pressure hot water, by using existing steam and cold water supplies. The mixer incorporates a safety device, to ensure that live steam cannot be accidentally ejected even if, for some reason, the cold water supply fails. The water temperature at the outlet of the ADCAMix is easily controlled by using water and steam valves fitted at the inlets.

MATIERE

Inox

TAILLES

3/4” x 3/4”

CONNEXIONS

Taraudée ISO 7 Rp

PRESSION MAXIMALE DE SERVICE

10 bar
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

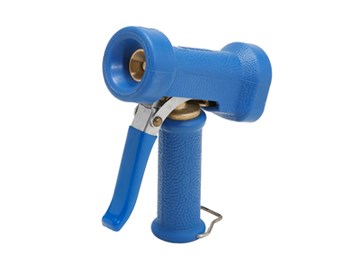

SG20 Water Saving Gun
SG20 Water Saving Gun

The SG20 series water-saving guns are especially recommended to be used along with the Adcamix MX20 steam to water mixers. By using this gun, water and energy costs can be considerably reduced and it also contributes to environmental protection, avoiding the use of chemicals in the cleaning process.

TAILLES

1/2"

PRESSION MAXIMALE DE SERVICE

24 bar
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

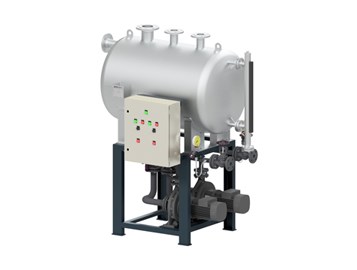

ECRU
ECRU

The ADCAMAT ECRU series electric condensate recovery units are recommended in the transfer of high-temperature water such as hot condensate, to a higher elevation or pressure. This condensate is usually used as boiler feedwater. The standard models are prepared for flows up to 20 m3/h, or higher on request. The units are composed of a condensate vessel (receiver), a metallic support frame, electric pumps, level controls, valves, prewired control panel and pipework for connections between the different elements of the units.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

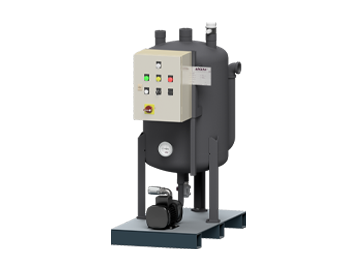

ECRUV
ECRUV

The ADCAMat ECRUV series electric condensate recovery units are recommended in the transfer of high-temperature water such as hot condensate, to a higher elevation or pressure. This condensate is usually used as boiler feedwater. The standard models are prepared for flows up to 4 m³/h. The units are composed of a vertical condensate vessel (receiver), a metallic support frame, electric pump, level controls, valves, prewired control panel and pipework for connections between the different elements of the units.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

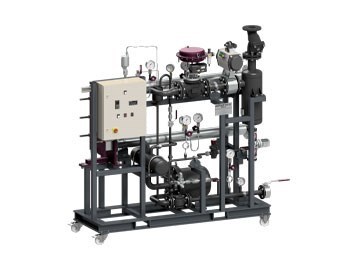

PWHU
PWHU

The ADCATherm PWHU packaged water heating units are designed for instant hot water heating in a safe and efficient way, using steam as primary fluid.
Each system is built to meet application and space requirements in a compact skid package, ready for connection into the system, reducing on-site labour and disruption time.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

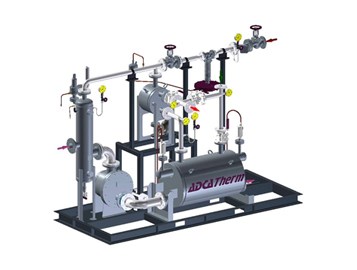

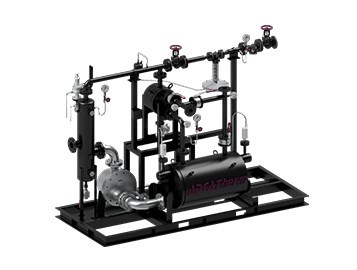

FRECO Flash steam heat recover
FRECO Flash steam heat recover

The ADCATtherm FRECO – flash steam heat recovery unit – is a skid mounted package unit to facilitate heat recovery from flash steam, condensate or both. The Freco is especially recommended for heating a continuous flow of fluid, such as make-up water to a boiler feedwater system. Non-continuous flow applications may require additional recirculation, relief valves, or other devices, to avoid system damage due to overheating and consequent overpressure.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

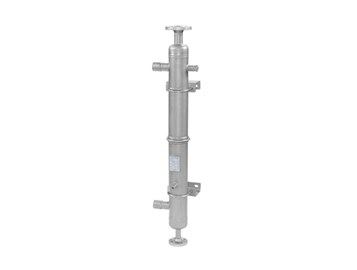

STS Heat exchanger
STS Heat exchanger

The ADCA STS series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tube has the advantage that it can improve the external surface and thermal performance.

MATIERE

Inox

PRESSION MAXIMALE ADMISSIBLE

16 bar

TEMPÉRATURE MAXIMALE

250 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

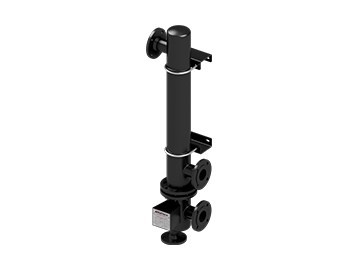

STH Heat exchanger
STH Heat exchanger

The ADCA ST series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tubes has the advantage that it can improve the external surface and thermal performance.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride ou taraudée, selon les normes EN ou ASME

PRESSION MAXIMALE DE SERVICE

16

TEMPÉRATURE MAXIMALE DE SERVICE

250 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

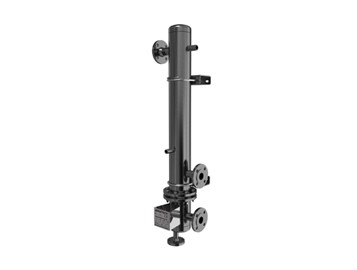

STV Heat exchanger
STV Heat exchanger

The ADCA ST series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tubes has the advantage that it can improve the external surface and thermal performance.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride ou taraudée, selon les normes EN ou ANSI

PRESSION MAXIMALE DE SERVICE

16 bar

TEMPÉRATURE MAXIMALE DE SERVICE

250 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

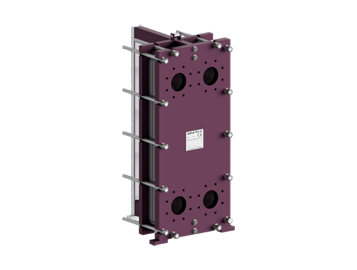

PAT
PAT

The ADCATherm PAT plate heat exchangers (gasketed and bolted), consist of a variable number of pressed heat transfer plates clamped together between a fixed and a movable pressure plate, all assembled in a metal frame.

MATIERE

Acier carbone, inox ou alliages spéciaux

CONNEXIONS

Taraudée femelle ISO 228 ou NPT
Bride EN 1092-1 PN 10 ou ASME B16.5 Classe 150

PRESSION MAXIMALE DE SERVICE

10 bar

TEMPÉRATURE MAXIMALE DE SERVICE

Jusqu'à 180 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

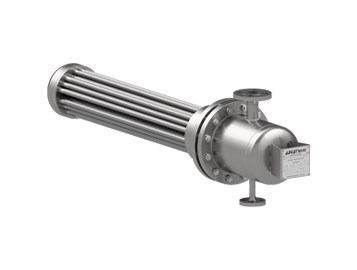

R series heating coils
R series heating coils

The ADCA R series steam to water tubular heating coils are shorter and lighter than the alternative tubular heating coils manufactured with smooth pipes. The use of extruded low fin tube has the advantage that it can improve the external surface and thermal performance.

CONNEXIONS

Bride EN ou ASME
Taraudée sur demande

PRESSION MAXIMALE DE SERVICE

16 bar

TEMPÉRATURE MAXIMALE DE SERVICE

250 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

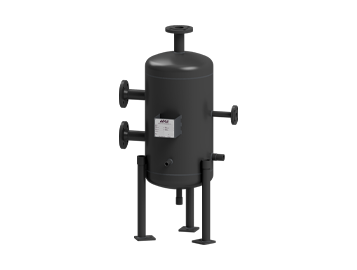

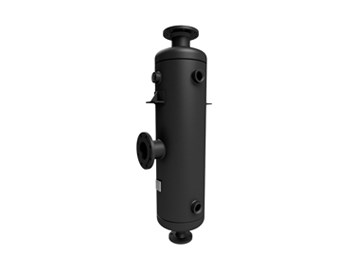

RV
RV

The flash vessel is the main component in any flash recovery system. It can be used in all steam plants where high pressure condensate is reduced to a lower pressure, so that flash steam is formed by reevaporation. This steam can be used in low pressure process or heating equipments.

MATIERE

Acier au carbone or inox

TAILLES

RV06, RV08, RV12, RV16 et RV18

CONNEXIONS

Bride EN PN 16

PRESSION MAXIMALE DE SERVICE

16 bar

TEMPÉRATURE MAXIMALE DE SERVICE

250 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

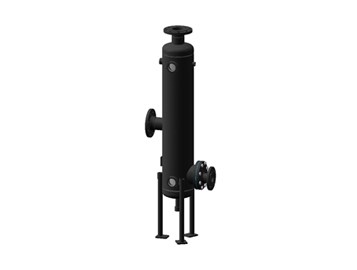

RVST
RVST

The flash vessel is the main component in any flash recovery system. It can be used in all steam plants where high-pressure condensate is reduced to a lower pressure, so that flash steam is formed by re-evaporation. This steam can be used in a low pressure process or heating equipment.

MATIERE

Acier au carbone or inox

TAILLES

RVST08, RVST12, RVST16, RVST18

CONNEXIONS

Bride EN PN 16

PRESSION MAXIMALE DE SERVICE

16 bar

TEMPÉRATURE MAXIMALE DE SERVICE

250 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

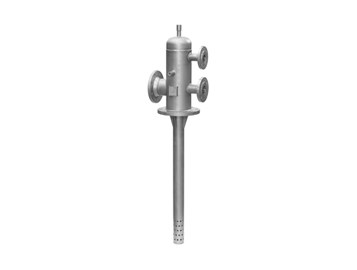

ADG
ADG

The ADCATherm atmospheric semi-deaerators are designed to heat boiler feed water and to reduce oxygen and carbon dioxide (oxygen values in the feed water of less than 1,6 mg/L can be achieved). Remaining oxygen can be completely removed using oxygen-scavenging chemicals. Basically, the complete system consists of a storage vessel, a deaeration head section and a vent.

CONNEXIONS

Bride EN ou ASME
Sockets BSP ou NPT

PRESSION MAXIMALE ADMISSIBLE

0,5 bar

TEMPÉRATURE MAXIMALE

120 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

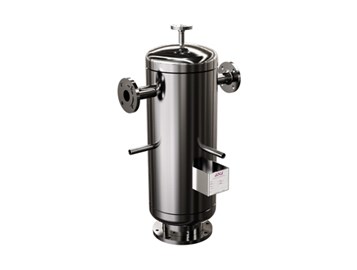

TDG
TDG

The TDG series tray-type thermal deaerators are designed to heat boiler feed water and reduce oxygen and carbon dioxide levels (oxygen levels in the feed water of less than 0,02 mg/l - 0,02 ppm can be achieved). Remaining oxygen can be completely removed using oxygen-scavenging chemicals. Basically, the complete system consists of a storage vessel, a deaeration section and a vent.

MATIERE

Acier au carbone or inox

CONNEXIONS

Flanges EN ou ASME
Sockets BSP ou NPT
Différentes connexions sur demande

PRESSION MAXIMALE ADMISSIBLE

0,5 bar
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

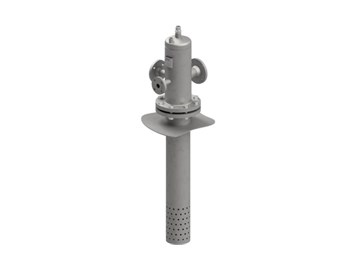

FCD
FCD

The ADCA flash condensing heads are designed to promote energy efficiency on new or existing systems. Mixing the flash steam with the boiler make-up water allows the energy within the flash steam to be fully absorbed into the water and therefore reduces energy waste that normally occurs from the discharge of flash steam through a vent.

MATIERE

Inox

CONNEXIONS

Taraudée ISO 7 Rp
Bride EN ou ASME

PRESSION MAXIMALE ADMISSIBLE

0,5 bar

TEMPÉRATURE MAXIMALE

120 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

BEX
BEX

The ADCA BEX series blowdown expansion and cooling units are used in modern boiler houses to cool hot waste water and steam boiler blowdown before discharging them into a pit or drain.

MATIERE

Acier au carbone

CONNEXIONS

Taraudée femelle ISO 7 Rp ou NPT
À brides EN 1092-1 PN 16
À brides ASME B16.5 Classe 150

PRESSION MAXIMALE ADMISSIBLE

0,5 bar

TEMPÉRATURE MAXIMALE

120 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

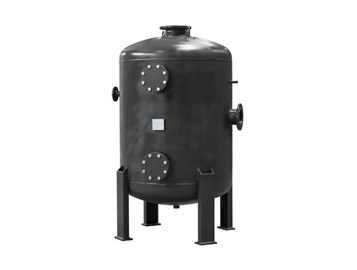

BV
BV

The ADCA BV series blowdown vessels are used in modern boiler houses to cool hot waste water and steam boiler blowdown before discharging them into a pit or drain. If flash steam can not be recovered or discharged to the atmosphere, an optional condensing water spray system can be supplied. It is fitted into the top of the unit and can be controlled by a thermostat.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride EN PN16 ou ASME

PRESSION MAXIMALE ADMISSIBLE

7 bar

TEMPÉRATURE MAXIMALE

180 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

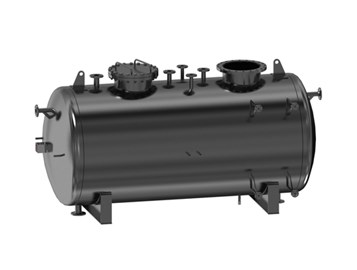

BFT
BFT

The BFT boiler feed tank is one of the most important devices in a boiler room. Its main function is to store the make-up water and condensate, assuring a reserve of treated water to supply to the steam boilers. The make-up water has to be softened to prevent scale formation on the boiler and the oxygen also has to be removed, so that corrosion in the boiler and steam system is avoided.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride EN ou ASME
ISO ou NPT Threaded sockets

PRESSION MAXIMALE ADMISSIBLE

0,5 bar

TEMPÉRATURE MAXIMALE

120 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

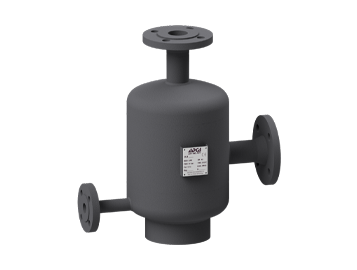

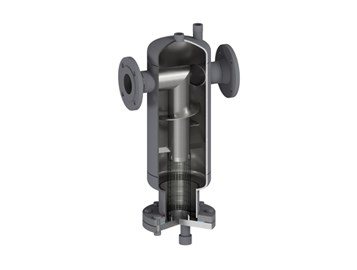

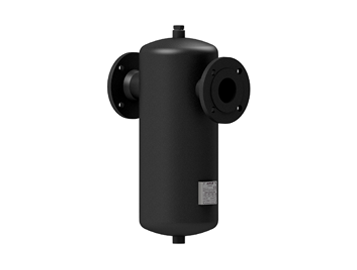

AS
AS

The AS series centrifugal air and dirt separators were designed to be used in the flow line of a hydronic heater or cooling system. The operation is based on the principle of centrifugal force, instead of relying on low-velocity separation, offering the advantage of efficient separation in a smaller vessel. The ADCA AS units provides maximum separation efficiency while minimizing space requirements.

MATIERE

Acier au carbone, acier zingué or inox

TAILLES

11/4” à 2” – DN 32 à DN 300

CONNEXIONS

Taraudée ISO 7 Rp
Bride EN PN16 ou PN40
Bride ASME Classe 150 ou 300
Brides spéciales sur demande

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

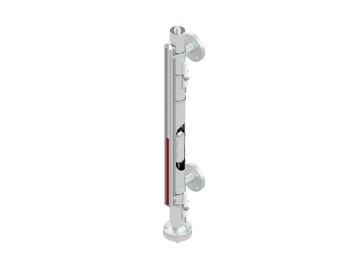

MLI
MLI

The MLI series of bypass type magnetic level indicators were designed for continuous level indication and/or control in ADCA ECRU units and other special SKID mounted packages.
The indicators can be equipped with multiple MSB reed switches for alarm purposes or a side mounted level transmitter for continuous level monitoring.

Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

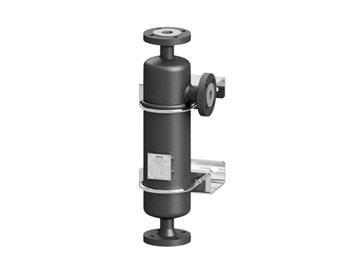

HCC
HCC

The HCC is a cooling device that allows the mixing of hot condensate with a lower temperature condensate, avoiding hammering. Condensate discharge from higher pressure lines (drip points, for instance) is often connected to low-pressure condensate lines, with lower temperatures. This sudden pressure drop will convert the sensible heat difference between the two fluid conditions into latent heat, generating flash steam.

MATIERE

Acier au carbone or inox

CONNEXIONS

Bride EN PN16 ou PN40
Bride ASME Classe 150 ou 300

PRESSION MAXIMALE DE SERVICE

40 bar

TEMPÉRATURE MAXIMALE DE SERVICE

300 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

EH
EH

The EH series exhaust heads were designed to protect personnel from injury and exterior of buildings from harmful effects of steam ejection to atmosphere. The head is fitted at the end of a vertical exhaust pipe and effectively retains the moisture separated from the steam for draining.

MATIERE

Acier au carbone, acier zingué or inox

TAILLES

1” à 10” – DN 25 à DN 250

CONNEXIONS

Bride EN PN16 ou ASME Classe 150

PRESSION MAXIMALE ADMISSIBLE

0,5 bar
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

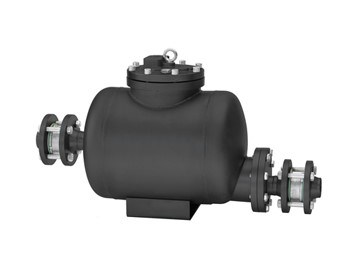

LIPO
LIPO

The LIPO series of condensate lifting pots are designed for installation in steam and condensate systems. They are particularly used in condensate lines where condensate must be transported without causing water hammers and noise and lifted to elevated condensate mains.

MATIERE

Acier au carbone or inox

TAILLES

DN 15 à DN 100

CONNEXIONS

Bride EN ou ASME

PRESSION MAXIMALE ADMISSIBLE

18 bar

TEMPÉRATURE MAXIMALE

250 ºC
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

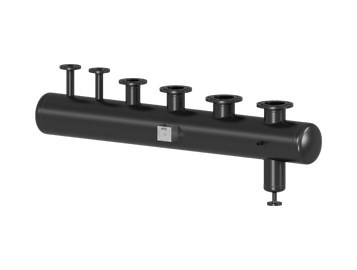

MAS
MAS

The MAS series steam distribution manifolds are essentially designed to allow the placement of steam supply valves in a single location, reducing costs and providing easy control of different steam lines. The drain connection, with an automatic steam trap installed, discharges any condensate formed, thus providing high-quality dry steam.

TAILLES

DN 100 à DN 300

CONNEXIONS

Bride EN PN16 ou PN40
ASME Classe 150 ou 300
Taraudée ISO 7 Rp ou NPT sur demande
Demandez des informations

Que vous ayez une question sur les produits, les prix, les équipements personnalisés ou autre chose, notre équipe est prête à vous aider.

PLUG & PLAY SKIDS

_

Le nom de notre entreprise comporte «ingénierie » pour une raison. Nous avons véritablement les connaissances, l'expertise et les installations en interne pour développer des solutions sur mesure qui amélioreront les process de nos clients. Ceci, bien sûr, en phase avec notre vaste gamme d'équipements standard.
Besoin d'aide?

Nous sommes là pour vous aider et répondre à toutes vos questions.
