These steam traps operate intermittently and are suitable for use with low to high pressure saturated or superheated steam.

Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MAIN FEATURES

Material: Stainlesss steel

Sizes: According to the selected pipeline connector

Flow rate capacity: Up to 610 kg/h

Max. ΔP: 27 bar

Check out the Information Sheet for more information on this model.

The Factory and ADCAPure are now on our YouTube channel.

Subtitles available in English, Portuguese, Spanish, French, German, Italian and Russian.

Take a closer look here.

The 33rd edition of ACHEMA took place in Frankfurt, Germany from 22 - 26 August 2022.

ACHEMA is a trade fair where we insist on being present in all editions.

Therefore, we took part of this World Forum for the Process Industries to introduce Valsteam's products and novelties once again.

We give a special thank you to all who attended this event and visited us!

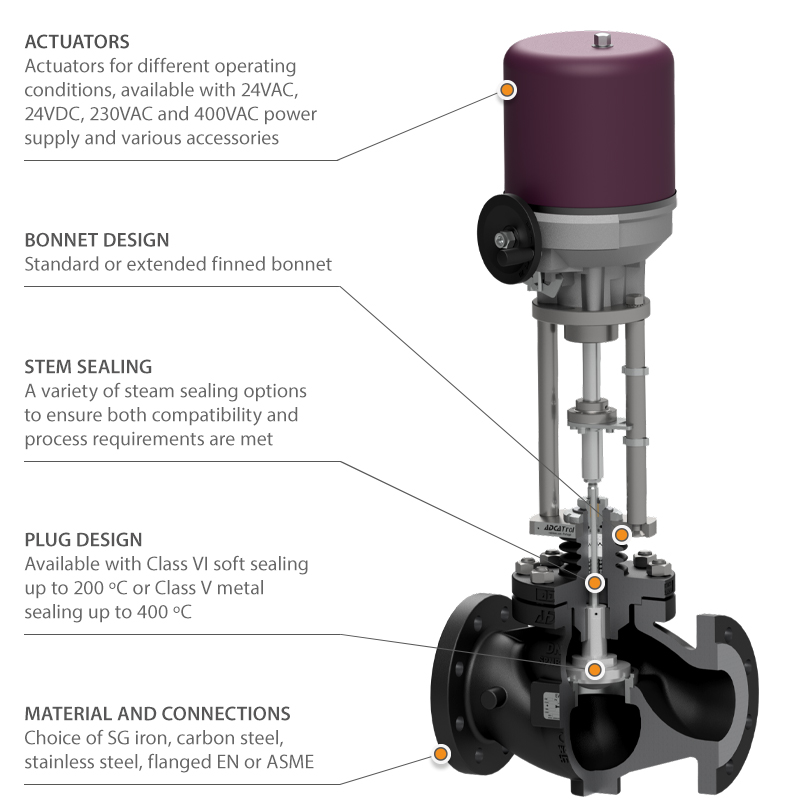

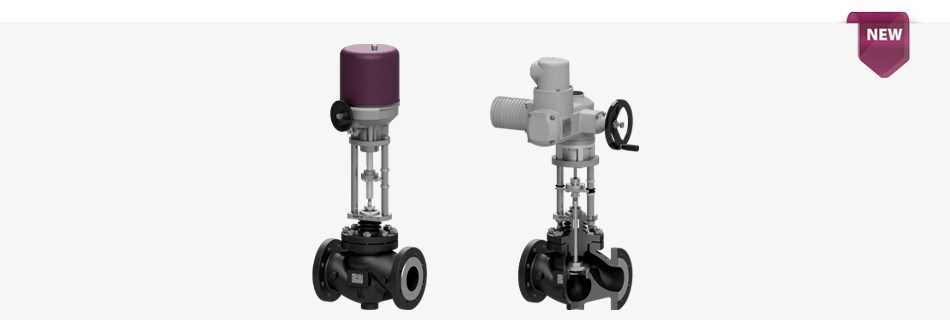

These valves are suitable for use with the most common process fluids such as steam, water, superheated water, air, neutral gases and oils.

MAIN FEATURES

Material: SG iron, carbon steel and stainless steel

Sizes:  DN 15 to DN 100

Connections: Flanged EN PN 16 or PN 40

Sealing: Soft sealing, up to 200 ºC

Check out the datasheet for more information on this model.

Designed for use with water, compressed air and other liquids and gases compatible with the construction.

MAIN FEATURES

Material: SG iron, carbon steel and stainless steel

Sizes:  DN 50 to DN 100

Connections: Flanged EN PN 16 or PN 40

Flow rate capacity: Up to Kvs 129,5

Check out the datasheet for more information on this model.

We are looking forward to your visit!

Hall 08 (Pumps, Compressors, Valves and Fittings)

Booth D28

https://www.achema.de/en/

The device takes care of both TDS and intermittent blowdown controls. TDS (Total Dissolved Solids) is controlled through measurement of the boiler water electrical conductivity and intermittent control is performed via a blowdown timer.

MAIN FEATURES

These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting.

Specially designed for draining high pressure superheated steam lines and processes.

MAIN FEATURES

Material: Carbon steel

Sizes:  1/2'' to 1'' - DN 15 to DN 25

Max. Operating Pressure: 160 bar

Max. Operating Temperature: 525 ºC

Flow rate capacity: Up to 4500 kg/h

Check out the datasheet for more information on this model.

These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam.

Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MAIN FEATURES

Material: Stainlesss steel

Sizes: 1/2” to 1”; DN 15 to DN 25

Connections: Female threaded ISO 7 Rp or NPT; Flanged EN; Flanged ASME; Socket weld; Butt weld

Maximum operating temperature: 400 ºC

Flow rate capacity: Up to 610 kg/h

Max. ΔP: 27 bar

Check out the datasheet for more information on this model.

These regulators, available with spring or dome-loading, are designed for use with clean steam, compressed air, water and other gases or liquids compatible with the construction materials and valve design.

MAIN FEATURES

Material: Stainless steel

Sizes:  1/2” to 2”; DN 15 to 50

Connections:  ASME BPE, DIN and ISO clamp ferrules or tube weld (ETO) ends

Max. upstream pressure: 8 bar

Regulating range: 0,8 to 1,5 bar; 1 to 3 bar; 1,5 to 5 bar

Flow rate coefficients: Kvs 1,3 to 13

Check out the datasheet for more information on this model.

The new ADCAPure P163 is a series of inline direct acting, diaphragm sensing pressure reducing valves.

These regulators, available with spring or dome-loading, are designed for use with clean steam, compressed air, water and other gases or liquids compatible with the construction materials and valve design.

MAIN FEATURES

Material: Stainless steel

Sizes:  1/2” to 2”; DN 15 to 50

Connections:  ASME BPE, DIN and ISO clamp ferrules or tube weld (ETO) ends

Max. upstream pressure: 8 bar

Regulating range: 0,8 to 1,5 bar; 1 to 3 bar; 1,5 to 5 bar

Flow rate coefficients: Kvs 1,3 to 13

Check out the datasheet for more information on this model.

These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting.

Ideally suited for in high pressure saturated and superheated steam lines and processes.

MAIN FEATURES

Material: Carbon steel

Sizes:  1/2'' to 1'' - DN 15 to DN 25

Connections: Threaded ISO 7, Flanged EN or ASME, Socket weld and Butt weld

Max. Operating Pressure: Up to 110 bar

Max. Operating Temperature: Up to 525 ºC

Flow rate capacity: Up to 6500 kg/h

Check out the datasheets for more information on these models

BM87  /  BM88  /  BM89

ACHEMA PULSE platform is live!

Visit our profile and get a chance to exchange ideas and solutions with our team.

They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

These ball float type vents are available with soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines.

MAIN FEATURES

Material:  Carbon steel and Stainless steel

Sizes:  1” x 1/2” ; DN 25 x 15

Connections: Female threaded ISO 7 Rp or NPT; Flanged EN or ASME; Socket weld (SW)

Max. Operating Pressure: 32 bar

Max. Operating Temperature: Up to 250 ºC

Check out the datasheets for more information on these models

AE31.2  /  AE41.2

The new FA21.1, FA31.1 and FA41.1 are a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MAIN FEATURES

Material: SG iron, Carbon Steel or Stainless Steel

Sizes: 1/2” to 1” – DN 15 to DN 25

Connections: Female threaded ISO 7 Rp or NPT / Flanged EN or ASME / Socket weld (SW)

PMO: Up to 32 bar

TMO: Up to 250 ºC

Check out the datasheets for more information on these models

FA21.1  /  FA31.1  /  FA41.1

The new FLT312, FLT314 and FLT314TW are a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer.

Specially designed for applications where continuous drainage is essential and high loads are involved.

MAIN FEATURES

Material: Carbon steel

Sizes: 2” ; DN 50 |  21/2” ; DN 65 | 3” ; DN 80

Connections: Flanged EN 1092-1 PN 16; Flanged ASME B16.5 Class 150

PMO: 12 bar

TMO: 250 ºC

Flow rate capacity: Up to 100000 kg/h

Check out the datasheets for more information on these models:

FLT312 & FLT314  |  FLT314TW

MAIN FEATURES

Material: SG iron, Carbon steel or Stainless steel

Sizes: 1” ; DN 25

Connections: Female threaded ISO 7 Rp or NPT; Flanged EN 1092-1/-2 PN 16/40; Flanged ASME B16.42/B16.5 Class 150/300; Socket weld (SW) ASME 16.11

PMO: Up to 32 bar

TMO: Up to 250 ºC

Check out the datasheets for more information on these models:

FA25.1  |  FA35.1  |  FA45.1

These valves can be assembled with pneumatic, hydraulic or electric actuators, for modulating and shut-off control tasks.

MAIN FEATURES

Material: SG iron, carbon steel or stainless steel

Sizes: DN 15 to DN 200

Connections: Flanged EN 1092-2 PN 16 or Flanged EN 1092-1 PN 16 or PN 40

Flow rate coefficients: Kvs 0,1 to 630

Check out the datasheet for more information on this model.

PA10 - Small but powerful actuator, with 100 cm3 area and 20mm stroke, available in mild steel and stainless steel construction.

PA80, PA80D & PA80T - Heavy duty, high thrust and high stroke actuator with single (PA80), duplex (PA80D) or triplex (PA80T) design, available in mild steel construction.

MAIN FEATURES:

Material: Mild steel or stainless steel

Sizes: 100 cm2 to 2400 cm2

Max. air supply: Up to 6 bar

Rated stroke: Up to 60 mm

Check out the datasheet for more information on this model.

The BM20i is a series of robust and efficient bimetallic steam traps and air vents.

These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting.

MAIN FEATURES

Material: Stainless steel

Sizes: 1/2” to 1” ; DN 15 to DN 25

Connections: Female threaded ISO 7; Flanged EN or ASME; Socket weld (SW); Butt weld (BW)

Flow rate capacity: Up to 1850 kg/h

Check out the datasheet for more information on this model.

These steam traps operate intermittently, and are suitable for use with saturated or superheated steam.

Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.

MAIN FEATURES

Material: Carbon steel

Sizes: 1/2'' to 1'' ; DN 15 to DN 25

Connections: Threaded ISO 7; Flanged EN or ASME; Socket weld; Butt weld

Flow rate capacity: Up to 610 kg/h

Maximum ΔP: Up to 40 bar

Check out the datasheet for more information on this model.

These valves can be installed in pressure reducing stations throughout all industries, and provide sensitive and accurate control even when inlet pressure fluctuations or relevant flow variations occur.

MAIN FEATURES

Material: Carbon steel or stainless steel

Sizes: DN 15 to DN 100

Connections: Flanged EN 1092-1 PN 16 or PN 40

Max. upstream pressure: 28 bar

Max. operating temperature: 250 ºC

Regulating range: 0,07 to 17 bar

Check out the datasheet for more information on this model.

The new AE35.2 and AE45.2 are automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice. These ball float type vents are available with soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines.

MAIN FEATURES

Material: Carbon steel or Stainlesss steel

Sizes: 1” x 1/2” and 1” x 1” DN 25 x 15 and DN 25 x 25

Connections: Female threaded ISO 7 Rp or NPT Flanged EN PN 40, Flanged ASME Class 150 or 300, Socket weld (SW) ASME

Maximum operating pressure: 32 bar

Check out the datasheets for more information on these models:

AE35.2  |  AE45.2

We present the new float and thermostatic steam traps:  FLT27, FLT29, FLT37, FLT39, FLT47 and FLT49.

The new models feature a central mechanism, improving ease of maintenance and change in flow direction, combined with a wider pressure operating range and many new options!

MAIN FEATURES

Material: SG iron, Carbon steel or Stainlesss steel

Sizes: 11/2” to 2”; DN 40 to DN 50 or 2” ; DN 50

Connections: Female threaded ISO 7 Rp or NPT; Flanged EN PN 16 or PN 40; Flanged ASME Class 150 or 300; Socket weld ASME

Maximum operating pressure: 14 or 32 bar

Maximum operating temperature: 198 ºC or 250 ºC

Check out the datasheets for more information on these models:

FLT27  |  FLT29  |  FLT37  |  FLT39  |  FLT47  |  FLT49

The new PS161 sanitary pressure sustaining valve is available with spring or dome-loading and is designed for use with clean steam, compressed air, water and other gases or liquids compatible with the construction materials and valve design.

MAIN FEATURES

Material: Stainless steel

Sizes: 1/2” to 2” ; DN 15 to 50

Connections: ASME BPE, DIN and ISO clamp ferrules or tube weld (ETO) ends

Max. upstream pressure: 8 bar

Max. operating temperature: 180 ºC

Regulating range: 0,8 to 5 bar

Flow rate coefficients: Kvs 1,6 to 19,8

Check out the datasheet for more information on this model.

New automatic air and gas vents for liquid systems are now available: AE37.2, AE39.2, AE47.2 and AE49.2.

These high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy.

They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MAIN FEATURES

Material: Carbon steel  and stainless steel

Sizes: 11/2” x 1”, 2” x 1”, 21/2” x 11/2” and 3”; DN 40 x DN 25, DN 50 x DN 25, DN 65 x DN 40 and DN 80 x DN 40

Connections: Female threaded ISO 7 Rp or NPT, Flanged EN PN 40, Flanged ASME Class 150 or 300 and Socket weld (SW) ASME 16.11

Check out the datasheet for more information on these model:

AE37.2  |  AE39.2  |  AE47.2  |  AE49.2

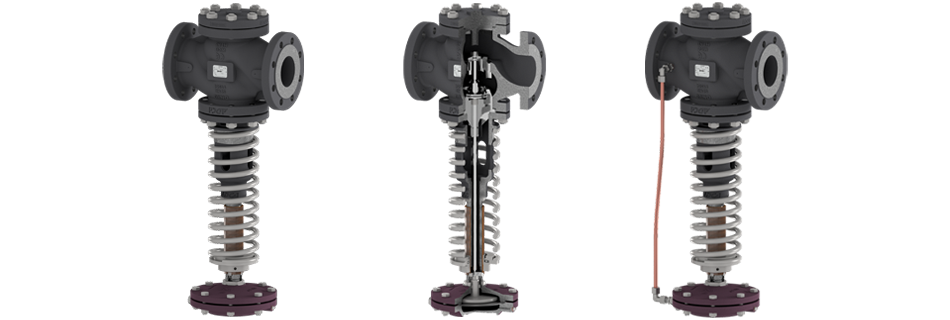

The ADCA PS46 series pressure sustaining valves are single seated, bellows sealed proportional controllers that operate without auxiliary energy. These valves are designed for use with steam, compressed air, and other gases compatible with the construction. They are particularly suitable for sustaining steam pressure in all energy and process systems where minimum upstream pressures must be kept under control or excess pressure must be dispersed.

MAIN FEATURES

Material: Carbon steel

Sizes: DN 15 to DN 100

Connections: Flanged EN 1092-1 PN 16 or PN 40

Check out the datasheet for more information on this model.

The FA25.3, FA35.3 and FA45.3 are the first models being released from our new range of automatic ball float traps.

These mechanical devices are specially designed for condensate drainage in compressed air and gas systems where high loads are involved.

MAIN FEATURES / FA25.3

Material: SG Iron

Sizes: 11/2” to 2”; DN 40 to DN 50

Connections: Fem threaded ISO 7 Rp or NPT - Flanged EN PN 16 - Flanged ASME Class 150

MAIN FEATURES / FA35.3

Material: Carbon steel

Sizes: 11/2” to 2”; DN 40 to DN 50

Connections: Fem threaded ISO 7 Rp or NPT - Flanged EN PN 40 - Flanged ASME Class 150 or 300 - Socket weld ASME

MAIN FEATURES / FA45.3

Material: Stainless steel

Sizes: 11/2” to 2”; DN 40 to DN 50

Connections: Fem threaded ISO 7 Rp or NPT - Flanged EN PN 40 - Flanged ASME Class 150 or 300 - Socket weld ASME

Check out the datasheets for more information on these models:

FA25.3    /    FA35.3    /    FA45.3

EXAME magazine, in partnership with Deloitte and Informa D&B, annually carries out the "1000 Best PME" initiative in which they distinguish, according to an analysis that takes into account various financial and economic indicators, the best companies of two dozen sectors covered.

Valsteam ADCA was distinguished as the best company of the Metalworking and Base Metallurgy sector, in 2019.

The ADCAPure P161 is a new series of angle design direct acting diaphragm sensing pressure reducing valves.

The new regulators ADCAPure P161 are available with spring or dome-loading and feature a compact clamped body, with standard or low pressure diaphragm variants.   The internal design has been carefully optimized to provide high flow capacities and keep droop to a minimum.

MAIN FEATURES

Sizes: 1/2'' to 2'' ; DN 15 to DN 50

Material: Stainless steel

Connections: ASME BPE, DIN and ISO clamp ferrules. Others on request.

Regulating ranges: From 0,3 to 5 bar

Full information about this new valve in the datasheet.

MAIN FEATURES

Sizes: DN 15 to DN 100 ; 1/2” to 4”

Material: SG iron, carbon steel and stainless steel

Connections: Flanged EN 1092-2 PN 16, Flanged EN 1092-1 PN 16 or PN 40 & Flanged ASME B16.5 Class 150 or 300

Check out the datasheets for more information on these models:

V16/2 EN

V16/2 ASME

In response to customer requirements, the S16 series centrifugal humidity separators are now also available with pressure rating of PN40.

MAIN FEATURES

Sizes: 1/2” to 2”

Material: Carbon steel or Stainless Steel

Connections: Female threaded ISO 7 Rp or NPT

Rating: PN16 or PN40

Check out the updated datasheets (S16S / S16SS) for more information on these models.
