ISC16
ISC16

The ISC16 high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves. Up to 3” / DN 80, they are joined by a food industry fitting according to DIN 11851 and the larger sizes DN 100 to DN 200 by flat flanges fixed with bolts and nuts.

TAMAÑOS

1/4” a 3” – DN 10 a DN 80

CONEXIONES

Roscado hembra ISO 7 Rp o NPT
Bridas EN PN 16
Bridas ASME Clase 150

PRESIÓN MÁXIMA DE FUNCIONAMIENTO

10 bar @ 200 ºC

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

ISC20i
ISC20i

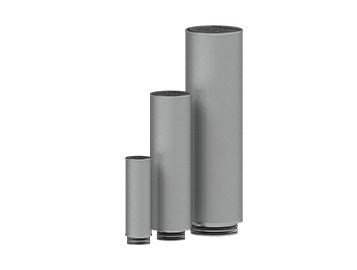

The ISC20i high efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves, with 1/4" to 3" being joined by a sanitary clamp ferrule according to DIN 32676 Series A. Whereas 4" to 6" are joined by bolts and nuts. All sizes include plugged drain and vent connections. The replaceable filter elements are made of sintered austenitic stainless steel and available with 1, 5 or 25 micron absolute rating.

TAMAÑOS

1/4” a 6” – DN 10 a DN 150

CONEXIONES

Roscado hembra ISO 7 Rp o NPT
Bridas EN 1092-1 PN 16
Bridas ASME B16.5 Clase 150
Conexiones sobre demanda

PRESIÓN MÁXIMA DE FUNCIONAMIENTO

Hasta 16 bar

TEMPERATURA MÁXIMA DE FUNCIONAMIENTO

Hasta 200 ºC

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

ISH10i
ISH10i

The ISH10i high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves and are joined by a sanitary clamp ferrule according to DIN 32676 Series A.

TAMAÑOS

1/2” a 2” – DN 10 a DN 50

CONEXIONES

Casquilos o abrazaderas clamp ASME BPE, DIN y ISO

PRESIÓN MÁXIMA DE FUNCIONAMIENTO

10 bar @ 200 ºC

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

S10H
S10H

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10H series baffle separators remove moisture from steam pipelines. Steam passes through the separator and as a result of expansion, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

MATERIAL

Acero inoxidable

TAMAÑOS

1/2” a 3”

CONEXIONES

Casquilos o abrazaderas clamp ASME BPE

PRESIÓN MÁXIMA PERMITIDA

10 bar

TEMPERATURA MAXIMA RELATIVA

200 ºC

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

S10HV
S10HV

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10HV series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

MATERIAL

Acero inoxidable

TAMAÑOS

1/2” a 2”

CONEXIONES

Casquilos o abrazaderas clamp ASME BPE

PRESIÓN MÁXIMA PERMITIDA

10 bar

TEMPERATURA MAXIMA RELATIVA

200 ºC

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

S11
S11

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S11 series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

MATERIAL

Acero inoxidable

TAMAÑOS

1/2” a 2”

CONEXIONES

Casquilos o abrazaderas clamp ASME BPE

PRESIÓN MÁXIMA PERMITIDA

10 bar

TEMPERATURA MAXIMA RELATIVA

200 ºC

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

DSHS
DSHS

The ADCA DSHS series of hygienic direct steam injection humidifiers are designed to ensure highly efficient and moisture free clean steam injection in air ducts and AHU for humidification purposes. These units are completely manufactured in 316L stainless steel, and are available as plug and play packaged solutions or alternatively as individual components to be incorporated into humidification systems.

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

SC32P
SC32P

The ADCAPure SC32P sample cooler consists in a helical-coil heat exchanger used to take samples quickly and safely from steam generators, clean or pure steam systems, WFI and other high purity mediums. Its spiral design saves significant space without compromise and a counter current flow path maximizes heat transfer and consequently cooling efficiency. The vertical sampling side ensures self drainability, as medium flows naturally by gravity to the sample outlet with no chance to remain inside.

MATERIAL

Acero inoxidable

TAMAÑOS Y CONEXIONES

Entrada / salida de agua de enfriamiento: 1/2

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.

Special equipment
Special equipment

ADCAPure taylor-made equipment, such as skid mounted systems, clean steam injectors, mushroom style air vents, and others, are available as a complement of this wide sanitary range.

Solicita información

Ya sea que tenga una pregunta sobre productos, precios, equipos personalizados o cualquier otra cosa, nuestro equipo está listo para ayudarlo.
