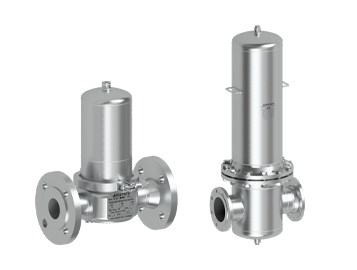

ISC20i
ISC20i

Die ISC20i-Serie besteht aus Filtern mit hohem Wirkungsgrad, welche kontaminierte Partikel aus Gasen wie Dampf oder Druckluft entfernen. Die optimierte Konstruktion zeichnet sich durch einen geringen Druckverlust aus, auch bei hohem Durchsatz. Die Filter aller Nennweiten bestehen aus 2 Hälften, so dass ein leichter Zugang jederzeit möglich ist. Die Nennweiten 1/4 - 3 Zoll sind mittels Clamps der DIN 32676 Serie A verbunden, wohingegen bei den Nennweiten 4 - 6 Zoll Schrauben zum Einsatz kommen. Alle Modelle verfügen über mit Stopfen verschlossene Anschlüsse zur Entleerung und Entlüftung. Die austauschbaren Filterelemente bestehen aus austenitischem, gesintertem Edelstahl und sind in Maschenweiten von 1, 5 oder 25 mm erhältlich.

NENNWEITEN

1/4” bis 6” – DN 10 bis DN 150

ANSCHLÜSSE

Innengewinde ISO 7 Rp oder NPT
Fansch EN 1092-1 PN 16
Fansch ASME B16.5 Klasse 150
Andere auf Anfrage

MAX. BETRIEBSDRUCK

Bis 16 bar

MAX. BETRIEBSTEMPERATUR

Bis 200 ºC
Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.

ISH10i
ISH10i

The ISH10i high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves and are joined by a sanitary clamp ferrule according to DIN 32676 Series A.

NENNWEITEN

1/2” bis 2” – DN 10 bis DN 50

ANSCHLÜSSE

ASME BPE, DIN und ISO clamp-Verschlüsse

MAX. BETRIEBSDRUCK

10 bar @ 200 ºC
Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.

S10H
S10H

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10H series baffle separators remove moisture from steam pipelines. Steam passes through the separator and as a result of expansion, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

WERKSTOFF

Edelstahl

NENNWEITEN

1/2” bis 3”

ANSCHLÜSSE

ASME BPE-Clamp-Verschlüsse

MAX. ZULÄSSIGER DRUCK

10 bar

MAX. BEZUGSTEMPERATUR

200 ºC
Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.

S10HV
S10HV

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10HV series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

WERKSTOFF

Edelstahl

NENNWEITEN

1/2” bis 2”

ANSCHLÜSSE

ASME BPE-Clamp-Verschlüsse

MAX. ZULÄSSIGER DRUCK

10 bar

MAX. BEZUGSTEMPERATUR

200 ºC
Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.

S11
S11

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S11 series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.

WERKSTOFF

Edelstahl

NENNWEITEN

1/2” bis 2”

ANSCHLÜSSE

ASME BPE-Clamp-Verschlüsse

MAX. ZULÄSSIGER DRUCK

10 bar

MAX. BEZUGSTEMPERATUR

200 ºC
Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.

DSHS
DSHS

The ADCA DSHS series of hygienic direct steam injection humidifiers are designed to ensure highly efficient and moisture free clean steam injection in air ducts and AHU for humidification purposes. These units are completely manufactured in 316L stainless steel, and are available as plug and play packaged solutions or alternatively as individual components to be incorporated into humidification systems.

Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.

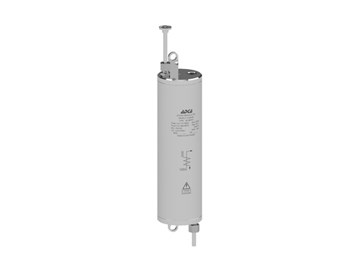

SC32P
SC32P

The ADCAPure SC32P sample cooler consists in a helical-coil heat exchanger used to take samples quickly and safely from steam generators, clean or pure steam systems, WFI and other high purity mediums. Its spiral design saves significant space without compromise and a counter current flow path maximizes heat transfer and consequently cooling efficiency. The vertical sampling side ensures self drainability, as medium flows naturally by gravity to the sample outlet with no chance to remain inside.

WERKSTOFF

Edelstahl

NENNWEITEN UND ANSCHLÜSSE

Kühlwassereintritt / -austritt: 1/2” am Gehäuse oder 3/4
Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.

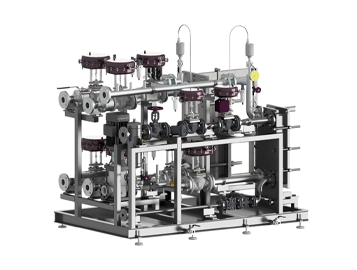

Special equipment
Special equipment

ADCAPure taylor-made equipment, such as skid mounted systems, clean steam injectors, mushroom style air vents, and others, are available as a complement of this wide sanitary range.

Fragen Sie nach Informationen

Egal, ob Sie Informationen zu Produkten, Preisen und kundenspezifischen Lösungen benötigen oder weitere Fragen haben, unser Team hilft Ihnen gerne weiter.
